Hoover S2561 PortaPower Stick Cleaner Parts List & Schematic
ItemPart Number
1. Handle - S2551I, S2561, S2569 39454061
1. Handle - ADL - S2571 Part No Longer Available
2. Wire Tie 27479307
3. Tubing 66655405
4. Diode Assembly 47831008
5. Switch 28164280
6. Front Housing - AG - S2551 37222006
6. Front Housing - ABY - S2561 Part No Longer Available
6. Front Housing - JM - S2569 37222027
6. Front Housing - ADJ - S2571 37222024
7. Hose Wrap 39442045
8. Filter Assembly (Early Models without Post) 43615073
8. Filter Assembly (Models with Post) - Cyclonic Part No Longer Available
9. Screw 21447236
10. Dirt Cup - AAN - (Used with Filter Assembly without Post - See Note) 43645046
10. Dirt Cup - With Post (Used with Filter Assembly with Post Slot) (Includes Item 11) Part No Longer Available
10. Dirt Cup - ADL - S2571 (Includes Item 11) Part No Longer Available
11. Latch - AG Part No Longer Available
12. Nut 21642021
13. Washer 21312818
14. Seal 38783022
15. Fan Assembly 43566012
15. Fan Assembly 43566019
16. Motor Support Seal 34123048
17. Motor Housing Assembly 42193024
18. Spacer 31148011
19. Armature Assembly 44731085
20. Field Assembly (Includes Item 24) 45312047
21. Motor Mount Insulator 31195005
22. Motor Brush Housing 37193026
23. Spring (2) 38353014
24. Motor Brush Assembly (Includes 2 Brushes and 2 Crimps) 47313010
25. Washer 21329108
26. Motor Bearing Part No Longer Available
27. Bearing Retainer 36134006
28. Screw 214793DA
29. Screw 21479443
30. Wire Connector 27618508
31. Rear Housing - ABE (Includes Item 14) Part No Longer Available
32. Screw 21447236
33. Attachment Cord 46363110
34. Screw (3) 21447072
35. Hose Assembly Part No Longer Available
35. Hose Assembly - S2571 43491030
36. Tool Holder Part No Longer Available
37. Spring 38351018
38. Screw 21447124
39. Air Intake Door Part No Longer Available
Secondary Filter 38765021
Rug & Floor Nozzle - S2551, S2561 43414180
Rug & Floor Nozzle - S2571 43414182
Hard Floor Brush - 14" - S2569 43414189

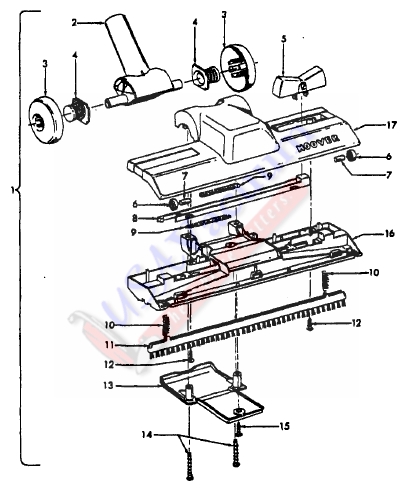

Hoover S2561 PortaPower Stick Cleaner Parts List & Schematic
Item Part Number
1. Deluxe Rug & Floor Nozzle Assembly - ABE - - S2155, S2543, S2545, S2561, S2571 43414180
1. Deluxe Rug & Floor Nozzle Assembly - ADJ - S2571 43414182
2. Nozzle Connector - ABE - S2155, S2543, S2545, S2561, S2571 38646071
2. Nozzle Connector - AG - S2571 38646082
3. Wheel & Bearing Assembly (2) - ABR - S2155, S2543, S2545, S2561, S2571 43244043
4. Included with ltem 3 Part No Longer Available
5. Pedal - ABN - S2155, S2543, S2545, S2561, S2571 38434019
5. Pedal - AG - S2571 38434022
6. Roller (2) - S2155, S2543, S2545, S2561, S2571 38521018
7. Roller Axle - AY (2) - S2155, S2543, S2545, S2561, S2571 Part No Longer Available
8. Slider - AG - S2155, S2543, S2545, S2561, S2571 38451008
9. Seal (2) - S2155, S2543, S2545, S2561, S2571 Part No Longer Available
10. Spring (2) - S2155, S2543, S2545, S2561, S2571 166649FW
11. Brush Back Assembly - AG - S2155, S2543, S2545, S2561, S2571 Part No Longer Available
12. Screw - Self Tapping (2) - S2155, S2543, S2545, S2561, S2571 21447203
13. Skid Plate - ABR - S2155, S2543, S2545, S2561, S2571 36434005
13. Skid Plate - AG - S2571 36434006
14. Screw - Self Tapping (2) - S2155, S2543, S2545, S2561, S2571 21447020
15. Screw - Self Tapping - S2155, S2543, S2545, S2561, S2571 21447203
16. Brush Housing - ABR - S2155, S2543, S2545, S2561, S2571 36414019
16. Brush Housing - AG - S2571 36414023
17. Rug & Floor Nozzle - ABE - S2155, S2543, S2545, S2561, S2571 43414157
17. Rug & Floor Nozzle - ADJ - S2571 43414185
