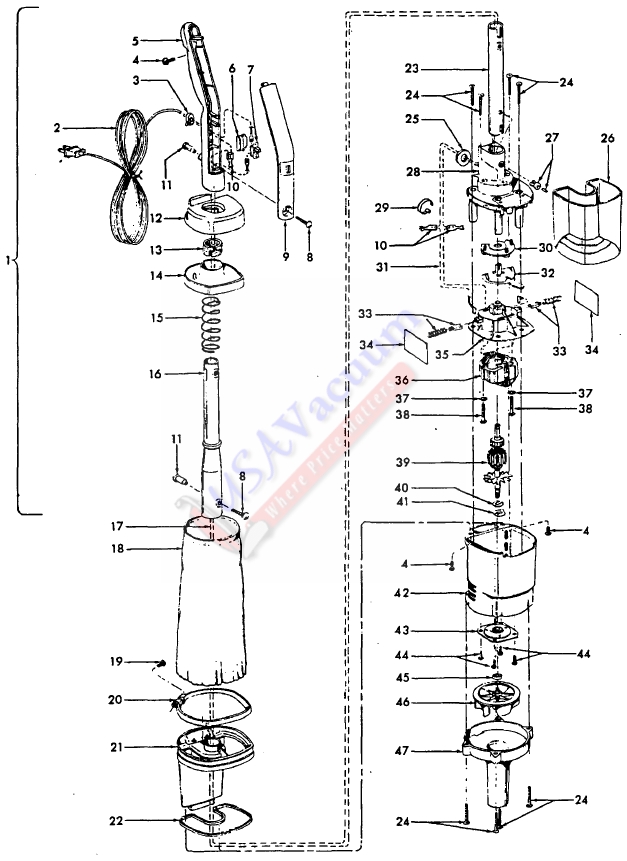

Hoover S2149 Quik-Broom II Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Handle Assembly - Upper Part No Longer Available
2. Attachment Cord Assembly - MV 46363154
3. Strain Relief Bushing Part No Longer Available
4. Screw (3) 21447003
5. Handle Grip - ABU 39454065
6. Terminal Shield Part No Longer Available
7. Switch 28177027
8. Handle Bolt - AW/AY 21631302
9. Handle Cover - ABU 37226059
10. Insulated Terminal 12227
11. Handle Nut - AW/AY (2) 32277021
12. Bag Cap - Outer - ABE 37225016
13. Gasket Part No Longer Available
14. Bag Cap - Inner - HE 37225010
15. Spring - Compression 38315014
16. Handle - Upper Half 32458006
17. Motor Lead Wire Assembly 46312003
18. Bag Assembly - ABT - S2141 43662032
18. Bag Assembly - ABC - S2139-080 43662034
18. Bag Assembly - AG - S2149 43662032
19. Screw - Self Tapping 21447218
20. Clamp Band - AAP 36171046
21. Bag Support Assembly - ABT - S2141 (Includes Items 20, 22) 42223175
21. Bag Support Assembly - AG - S2149 (Includes Items 20, 22) 42223176
21. Bag Support Assembly - ABC - S2139-080 (Includes Items 20, 22) 42223178
22. Gasket Part No Longer Available
23. Handle - Lower Half - ABU 32355014
24. Screw - SelfTapping - FW (8) 21434287
25. Washer - Fiber 21329104
26. Dirt Cup Part No Longer Available
27. Plastic Rivet Part No Longer Available
28. Motor Cover - AG 37196103
29. Wire Tie 27479307
30. Cam - AG Part No Longer Available
31. Motor Lead Wire Assembly Part No Longer Available
32. Lever - ABN Part No Longer Available
33. Motor Brush & Spring Assembly (2) Part No Longer Available
34. Insulator (2) 34152010
35. Motor Brush Housing Assembly 42196005
36. Field Assembly Complete 45312101
37. Lockwasher (2) 21338030
38. Screw(2) 21479438
39. Armature Assembly Complete 44731073
40. C-Clip Part No Longer Available
41. C-Clip Retainer 21378013
42. Motor Housing - ABT - S2141 37193022
42. Motor Housing - ABC - S2139-080 37193025
42. Motor Housing - AG - S2149 37193024
43. Bearing Plate Assembly Part No Longer Available
44. Screw - Self Tapping (4) 21447218
45. Spacer 31146008
46. Fan - AG Part No Longer Available
47. Fan Cover - ABT - S2141 Part No Longer Available
47. Fan Cover - ABC - S2139-080 37196150
47. Fan cover - AG - S2149 37196118
Rug & Floor Nozzle 43414180
Hoover S2149 Quik-Broom II Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Standard Rug & Floor Nozzle - ABE (Use Deluxe Rug & Floor Nozzle 43414180) - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 43414180
2. Nozzle Tube - ABE - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 38646078
3. Rug & Floor Nozzle - ABE - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 38615182
4. Roller (2) - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 38521018
5. Roller Axle - AY (2) - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 Part No Longer Available
6. Brush Housing - MV - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 Part No Longer Available
7. Spring (2) - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 166649FW
8. Brush Back Assembly - AG - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 48443003
9. Screw - Self Tapping (2) - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 21447203
10. Brush Back Lever - MV - S2141, S2147, 82139-080, S2149, S2515, S2541, S2541-040, S2551 Part No Longer Available
Hoover S2149 Quik-Broom II Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Deluxe Rug & Floor Nozzle Assembly - ABE - - S2155, S2543, S2545, S2561, S2571 43414180
1. Deluxe Rug & Floor Nozzle Assembly - ADJ - S2571 43414182
2. Nozzle Connector - ABE - S2155, S2543, S2545, S2561, S2571 38646071
2. Nozzle Connector - AG - S2571 38646082
3. Wheel & Bearing Assembly (2) - ABR - S2155, S2543, S2545, S2561, S2571 43244043
4. Included with ltem 3 Part No Longer Available
5. Pedal - ABN - S2155, S2543, S2545, S2561, S2571 38434019
5. Pedal - AG - S2571 38434022
6. Roller (2) - S2155, S2543, S2545, S2561, S2571 38521018
7. Roller Axle - AY (2) - S2155, S2543, S2545, S2561, S2571 Part No Longer Available
8. Slider - AG - S2155, S2543, S2545, S2561, S2571 38451008
9. Seal (2) - S2155, S2543, S2545, S2561, S2571 Part No Longer Available
10. Spring (2) - S2155, S2543, S2545, S2561, S2571 166649FW
11. Brush Back Assembly - AG - S2155, S2543, S2545, S2561, S2571 Part No Longer Available
12. Screw - Self Tapping (2) - S2155, S2543, S2545, S2561, S2571 21447203
13. Skid Plate - ABR - S2155, S2543, S2545, S2561, S2571 36434005
13. Skid Plate - AG - S2571 36434006
14. Screw - Self Tapping (2) - S2155, S2543, S2545, S2561, S2571 21447020
15. Screw - Self Tapping - S2155, S2543, S2545, S2561, S2571 21447203
16. Brush Housing - ABR - S2155, S2543, S2545, S2561, S2571 36414019
16. Brush Housing - AG - S2571 36414023
17. Rug & Floor Nozzle - ABE - S2155, S2543, S2545, S2561, S2571 43414157
17. Rug & Floor Nozzle - ADJ - S2571 43414185
