Sanitaire by Electrolux SC678 Upright Vacuum Cleaner - Free Shipping

List Price: $249.00

Our Price: $199.99

You save $49.01!

Sanitaire by Electrolux SC678 Upright Vacuum Cleaner - Free Shipping

Sanitaire's Commercial Light Weight is ideal for carpet cleaning chores when lighter weight vacuums are desired. This unit is easy to maneuver from room to room. A 12-inch cleaning width and 30-ft. power cord combine to make these lightweight commercial upright convenient and powerful cleaning machines.

Specifications:
Power: 5 Amp Motor
Filtration: Allergen
Container: Paper Dust Bag
Dust Capacity: 9.5 dry qt.
Cleaning Path: 12"
Cord Length: 30'
Tools: N/A
Hose: N/A
Motor CFM: 120
DB (Per ASTM Test Standards): 78
UPC: 0 2316912086 0
Product Weight: 13lbs
Package Dimensions: 22"L x 16.5"W x 7.75"H
Package Weight: 15.8 lbs


	1

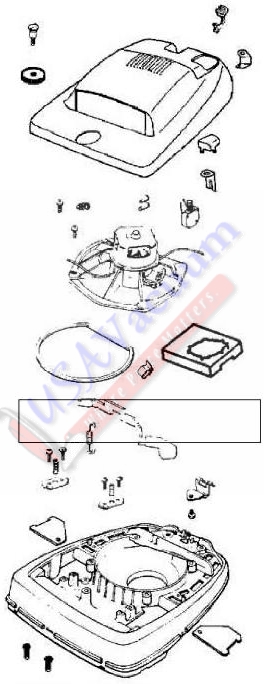

Sanitaire SC678 Commercial Upright Vacuum Cleaner Parts List & Schematic

Item	Part Number
1. Button - Switch	14660-1
2. Pedal - Foot	24834A-1
3. Cam (Right)	24964A
4. Cam (Left)	24965A
5. Gasket - Motor Seal	30517
6. Cover - Wheel	36263
7. Spring - Retainer	37034
8. Clip - Switch	37989
9. Knob Assembly	38052-2
10. Bracket - Bushing	38218-1
11. Separator	38314
12. Spring - Foot Pedal	53097
13. Rivet	53118
14. Steel Washer	Part No Longer Available
15. Clamp & Screw Assembly	53140
16. Screw	53143
17. Wire Splice	53214-2
18. Screw	53215-5
19. Screw	53238-11
20. Screw	53238-14
21. Motor Assembly	53349-8
22. Base Assembly	53444-9
23. Nut	53833-2
24. Switch Assembly	54151-2
25. Hood & Graphics Assembly	54314-2
26. Clip - Wire	55015

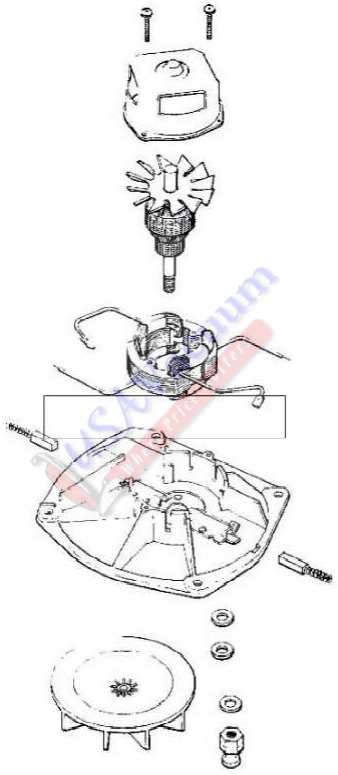

Item	Part Number
1. Fan Blower - Motor	12988-1
2. Motor Brush Assembly	Part No Longer Available
3. Pulley - Motor Drive	37012-2
4. Screw	53131-1
5. Washer - Fan	53148
6. Washer Package	53188-1
7. Armature	53470-3
8. Field Assembly	Part No Longer Available
9. Motor Base	Part No Longer Available

Item	Part Number
1. Tube - Handle (Lower)	12637-8
2. Handle Assembly (Upper)	25329-20
3. Grip - Handle	35293-8
4. Handle Socket Assembly	38183-1
5. Spring - Strain Relief	38495
6. Cord & Terminal Assembly	52370-14
7. Bolt Package	53145
8. Handle Screw	53198-1
9. Nuts	53213-5
10. Screw	53238-13
11. Cord Retainer Set	53574-1

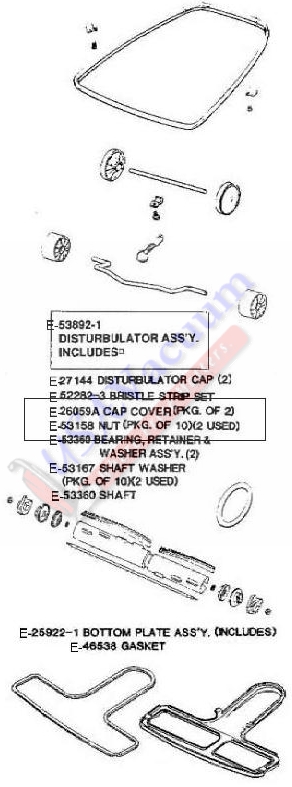

Item	Part Number
1. Tube - Disturbulator	13236-3
2. Bottom Plate	25922-1
3. Cap - Cover	Part No Longer Available
4. Cap - Disturbulator	27144
5. Wheel - Rear	35858-1
6. Wheel - Front	35859A-1
7. Axle - Front	35947A
8. Guard - Furniture	36999-32
9. Tape - Foam	46538
10. Axle - Rear	47562
11. Bristle Strip	52282-3
12. Spring & Axle	53076-2
13. Clip	53111
14. Clip - Furniture Guard	53144
15. Lock Nut Package	53158
16. Washer - Shaft Package	53167
17. Screw	53238-11
18. Screw	53238-6
19. Disturbulator Repair Kit	53360
20. Disturbulator	Part No Longer Available

Item	Part Number
1. Clip - Bag	30599D-10
2. Spring - Bag	47722
3. Gasket - Bag Adapter	48282
4. Washer	48748
5. Hardware Package	49461A
6. Adapter - Bag	52253-2
7. Bag Assembly	54582-1
