Sanitaire SC5815B QuietClean 4.5 Quart HEPA Upright

List Price: $349.00

Our Price: $309.00

You save $40.00!

Sanitaire SC5815B QuietClean 4.5 Quart HEPA Upright

Developed for daytime cleaning, the QuietClean 4.5Q Sealed HEPA Allergen Upright captures dust and allergens with its clean-air system and incredible filtration. With a 15'' cleaning path, True Balance brushroll and an innovative sound-dampening system, this LEED Compliant and CRI Green Label certified cleaner is the ultimate in filtration with a washable, sealed HEPA filter.
Features:

Designed for daytime cleaning with True Balance brushroll and innovatve sound dampening technology.
Synthetic media filters 96.75% of allergens down to 0.3 microns for cleaner air.
This CRI Green Label certified upright features a 4.5-qt. Allergen disposable dust bag.
15-inch cleaning path, long 40-foot cord and onboard tools mean less stopping and starting to plug/unplug and look for tools.


	1

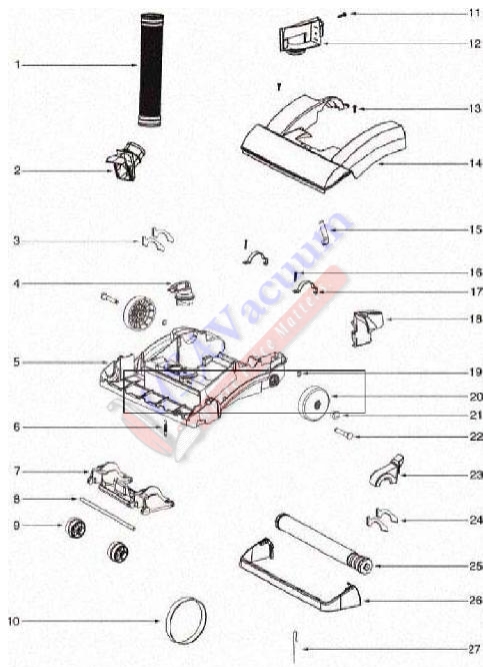

Sanitaire SC5815 HEPA Upright Commercial Vacuum Cleaner Parts List & Schematic

Item	Part Number
1. Base Hose Assembly	72001
2. Base Hose Assembly	71447119N
3. Felt - Base	73153
4. Knob - Height Adjustment	71448355N
5. Base Assembly	618778
6. Spring	54943
7. Carriage - Wheel	71446A119N
8. Axle - Front	71478
9. Wheel - Front	39173A119N
10. Belt - Style U Extended Life	61120A
12. Base Hose Assembly	71726119N
13. Screw Package	5323844
14. Hood Assembly	6187819
15. Spring - Handle Release	71574
16. Screw Package	5323827
17. Clamp-Motor	71487
18. Release - Handle	71457355N
19. Retaining Ring	544322
20. Wheel - Rear	72117119N
21. Bushing - Axle	73432
22. Axle - Rear	38590A
23. Belt Cap Assembly	71741A
24. Felt - Belt Cap	73152
25. Brushroll Assembly	622281
27. Guard Belt	38063

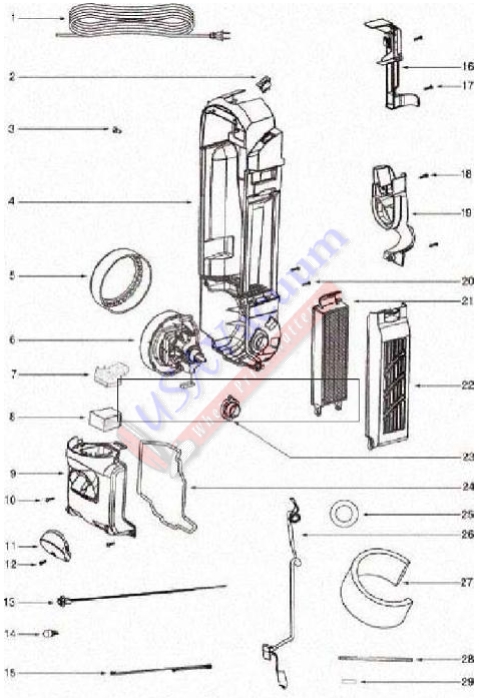

Item	Part Number
1. Supply Cord & Terminal Assembly	3868031
2. Switch - Rocker	28073A
3. Wire Splice	601921
4. Rear Housing Assembly	717442
5. Gasket - Motor Can	71649
6. Motor Assembly	62395
7. Motor Screen	71851119N
8. Filter - Pre-Motor	71480
9. Motor Cover Assembly	618793
11. Lens - Headlamp	71460313N
12. Screw	5323844
13. Socket & Terminal Assembly	707012
14. Lamp - Headlight	579403
15. Thermostat & Terminal Assembly	392521
16. Switch Cover	721271
19. Tool Pack - Lower	71455119N
20. Screw	5323827
21. Washable Hepa Filter	61840
22. Filter Cover & Graphics	720065
23. Bushing - Motor Support	70084
24. Gasket-Motor Cover	71484
25. Gasket - Motor Hub	719691
26. Cord - Jumper	Part No Longer Available
27. Foam - Sound	722241
28. Tube - Flexible	706511
29. Plug	72167

Item	Part Number
1. Grip - Left Handle	15596355N
1B. Grip-Right Handle	15597355N
2. Upper Handle Assembly	731751SV
3. Adapter - Clip	71746119N
5. Spring - Torsion	71852
6. Bag Cover Assembly	618807
7. Bag-In-Place Arm	71747119N
8. Retainer - Cord	28316355N
9. Screw Package	5323844
10. Spring - Torsion	71748
11. Paper Bag Package - Style Ls	61820
12. Gasket - Adapter	71854
13. Gasket - Bag Cover	71512
14. Gasket - Lower Bag	71765A
Filter - Exhaust (Hepa)	71801A

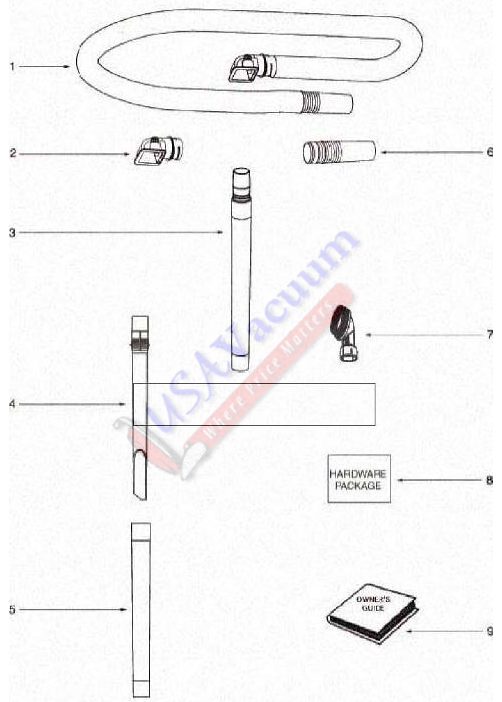

Item	Part Number
1. Hose Assembly	618654
2. Adapter - Hose	71725313N
3. Nesting Wand Assembly	71492A
4. Wand - Crevice	71956A355N
5. Wand - Outer	71973119N
6. Coupling - Hose	70559A119N
7. Combination Dust Brush	609902
8. Hardware Package	72322
