Sanitaire SC3683 Might Mite Whirlwind Canister Vacuum Cleaner Parts

Quick Links

What's Popular

You are here: Home > SANITAIRE > SANITAIRE SC3683

We found 1 results matching your criteria.

Sanitaire SC3683 Parts Schematic
(Parts Listed Below)
Sanitaire SC3683 Might Mite Whirlwind Canister Vacuum Cleaner Parts List & Schematic

Item	Part Number
1. Hose Assembly Complete	60289-7
2. Hose Coupling	15355-119N
3. Telescopic Wand	72953
4. Clip And Tool	54610
5. Disposable Bag, Style Mm, 3 Pack	60295A
6. Bleeder	37653-3
7. Curved Handle Assembly	26193-3
8. Dusting Brush	60290-1
9. Upholstery Nozzle	38284-3
10. Floor And Wall Brush	38702-2
12. Crevice Tool	27237-3

Item	Part Number
1. Housing Assembly	60487-27
2. Front Cover Gasket	59046-1
3. Front Cover Assembly	38956-1SV
4. Caster Assembly	38805-1
5. Wheel And Hub Assembly	37409-1
6. Rear Housing Assembly	28008B-4
7. Rear Wheel	15409A-119N
8. Extension Tube	27964-119N
9. Filter	38333

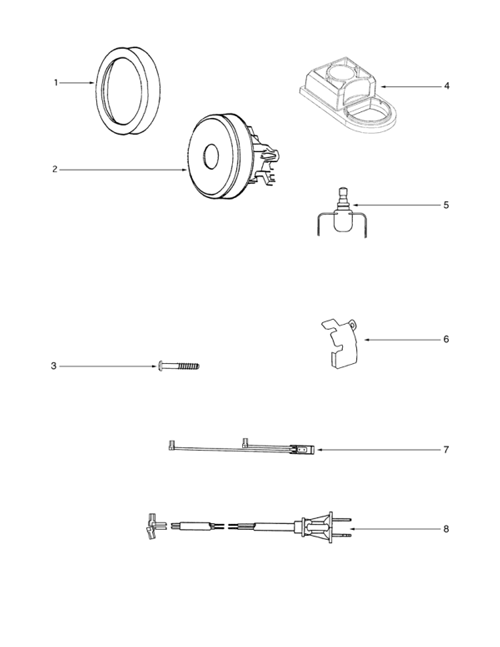

Item	Part Number
1. Motor Mounting Gasket	28261
2. Motor Assembly	608655
3. Screw, 10 Pack	60610
4. Motor Bushing	28050
5. Switch Assembly	28304A2
6. Wire Shield	39028
7. Thermostat And Terminal Assembly	Part No Longer Available
8. Cord And Terminal Assembly	394095
