Kirby Sentria (G10)

Kirby Sentria (G10)

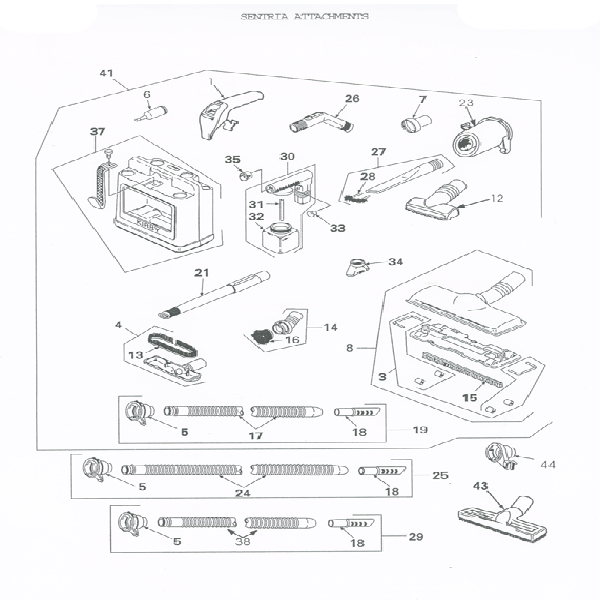

Sentria Attachments

Kirby Sentria (G10) Attachments
Item Part Number
1. Portable Handle Assembly 201306
3. Kirby Surface Nozzle Wheel, Axle, Plate Assembly W 216306
4. Wall and Ceiling Brush Assembly 210806S
5. Suction Blower Connector 210006
5. Suction Blower Connector 210006
5. Suction Blower Connector 210006
6. Inflator Deflator 213806
7. Massage Cup 214106
8. Surface Nozzle Assembly 215406
12. Upholstery Tool 212406
13. Wall Ceiling Brush and Brush Strip 218190
14. Dust Brush Assembly 218406S
15. Surface Nozzle Brush Strip 219197S
16. Dust Brush Ring 220189
17. Molded Hose Only with Cuffs 7' 223097
18. Hose Tube Swivel Connector 223306
18. Hose Tube Swivel Connector 223306
18. Hose Tube Swivel Connector 223306
19. Attachment Hose Assembly 7' 223606S
21. Extension Wand 224006
23. Air Intake Guard 224206
24. Kirby Molded Hose Only with Cuffs 12' 224806
25. Attachment Hose Assembly 12' 224801
26. Attachment Grip Assembly 225106
27. Crevice Tool Assembly 225706S
28. Crevice Tool Brush 226157
29. Stretch Hose Assembly 12' 225406S
30. Spray Gun Assembly 250206S
31. Spray Gun Supply Tube 250689
32. Spray Gun Jar 251089
33. Spray Gun Trigger Button Only 251306S
34. Spray Gun Suds Cap 252006S
35. Spray Gun Venturi 256606S
37. Attachment Caddy Assembly 286906
38. Stretch Hose Only 12' 225399
41. Attachment Set complete with Hose 207006S
43. Kirby Hard Floor Nozzle Sentria 932806
44. Variable Speed Selector Slide Lever 211397

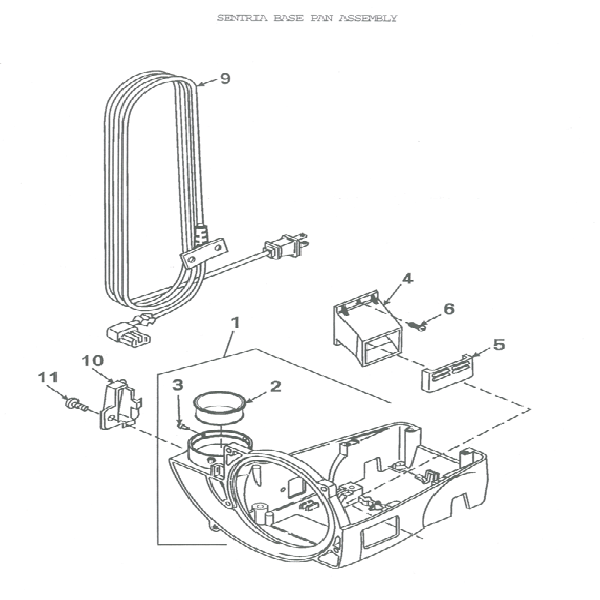

Kirby Sentria (G10) Base Fan Assembly

Kirby Sentria (G10) Base Fan Assembly
Item Part Number
1. Base Pan Assembly 604306
2. Exhaust Horn Gasket 601989
3. Exhaust Horn Gasket Rivet 100689
4. Exhaust Duct 106393
5. Exhaust Duct Grill 104106
6. Power Switch Screw 605989
9. Cord with Clip 192006
9. Cord 50 Foot 183007
9. Cord (Canada) 891806
10. Cord Set Cover 196006
11. Screw 232497

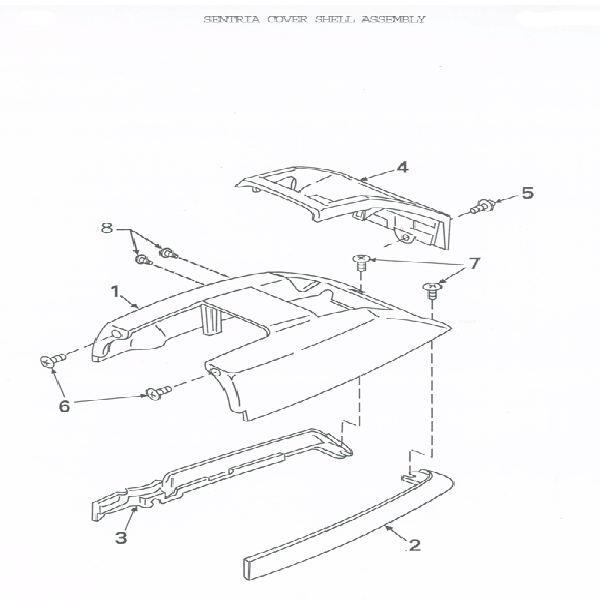

Kirby Sentria (G10) Cover Shell Assembly

Kirby Sentria (G10) Cover Shell Assembly
Item Part Number
1. Cover Shell 135606A
2. Cover Shell Left Trim Strip 630906S
3. Cover Shell Right Trim Strip 630806S
4. Scuff Plate 111206
5. Scuff Plate Torx Screw 233497
6. Cover Shell Torx Screw 232395
7. Shell Base Torx Screw 232497
8. Cord Clip to Cover Shell Torx Screw 233506S

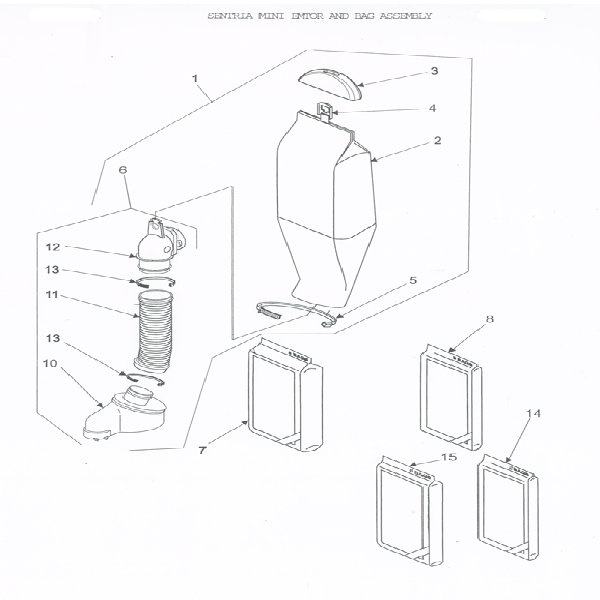

Kirby Sentria (G10) Mini Emtor and Bag Assembly

Kirby Sentria (G10) Mini Emtor and Bag Assembly
Item Part Number
1. Outer Bag and Snap Mini Emtor Assembly 187907G
2. Outer Cloth Bag with Latch Only 190007
3. Bag Top Cover 191806
4. Cloth Bag Top Latch 196406S
5. Mini Emtor Bag Clamp Strap 196506
6. Mini Emtor and Snap Fill Tube Assembly 185806
7. HEPA Filtration Paper Bag 197399
8. HEPA Filtration Paper Bag 197299
10. Snap Mini Emtor 188906
11. Disposable Bag Snap Fill Tube 190399
12. Snap Fill Tube Top Adaptor 190499
13. Fill Tube Tie 191182
13. Fill Tube Tie 191182
14. Allergen Paper Bag 205803
15. Allergen Paper Bag 204803

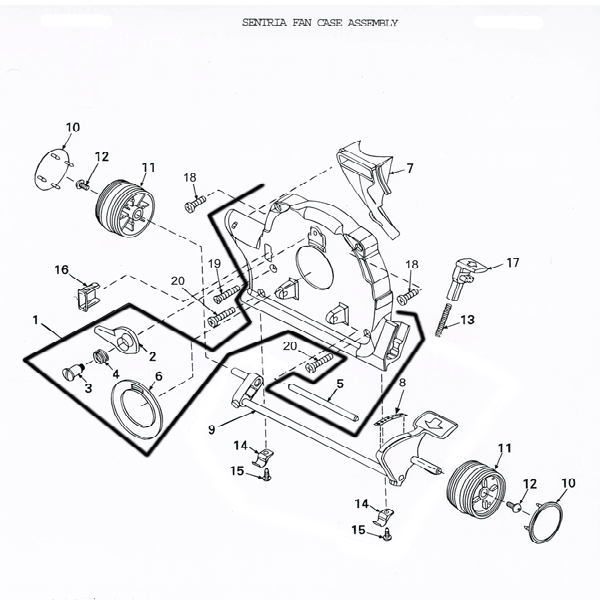

Kirby Sentria (G10) Fan Case Assembly

Kirby Sentria (G10) Fan Case Assembly
Item Part Number
1. Fan Case Assembly 119797
2. Nozzle Lock Lever Assembly 125297
3. Nozzle Lock Screw 1211
4. Nozzle Lock Spring 1212
5. Nozzle Attachment Shaft 121689
6. Fan Case Unigasket 122097
7. Fan Case Volute Deflector 125489
8. 663706S Height Adjustment Ratchet Pedal 631589
9. 131606S Front Wheel Shaft Assembly with Label 131694
10. Front Wheel Hub Cap 131806
10. Front Wheel Hub Cap 131806
11. Front Wheel Assembly 131906
11. Front Wheel Assembly 131906
12. Front Wheel Torx Screw 1321
12. Front Wheel Torx Screw 1321
13. Ratchet Lock Spring 1331
14. Front Wheel Shaft Clamp 134073
14. Front Wheel Shaft Clamp 134073
15. Front Wheel Shaft Clamp Torx Screw 193281
15. Front Wheel Shaft Clamp Torx Screw 193281
16. 610006S Fan Case Power Switch Bezel 610089
17. Ratchet Lock Assembly 631589
18. Fan Case Slide Bracket Top Torx Screw 134689
18. Fan Case Slide Bracket Top Torx Screw 134689
19. Fan Case Base Pan Flat Head Torx Screw 125189
20. Fan Case Base Pan Bottom Torx Screw 234898
20. Fan Case Base Pan Bottom Torx Screw 234898
Kirby Sentria (G10) Handle Fork Assembly

Kirby Sentria (G10) Handle Fork Assembly
Item Part Number
1. Handle Fork Latch Plate Torx Screw 233797
2. Handle Fork Latch Plate 672189
3. Upper Cord Hook Swivel 173806S
4. Cord Hook Swivel Spring 174167
5. Cord Hook Swivel Screw 174006S
6. Handle Fork Bezel 289506
7. Handle Fork Bezel Torx Screw 605989
8. Handle Fork Assembly 175006
9. Handle Rear Cover Screw 102168
9. Handle Rear Cover Screw 102168
9. Handle Rear Cover Screw 102168
10. Handle Fork Rear Cover Assembly 673706
11. Handle Grip Bag Release Button 672006S
12. Handle Grip Assembly 675706
Kirby Sentria (G10) Headlight Cap / Slide Bracket Assembly

Kirby Sentria (G10) Headlight Cap / Slide Bracket Assembly
Item Part Number
1. Headlight Screw 102168
2. Headlight Cap Lens 108506S
3. Headlight Cap LED Circuit Board 164306
4. Headlight Cap Casting 160006
5. Headlight Pivot Casting 161389
6. Headlight Pivot Bushing 161689
7. Headlight Frame Bracket 161706
8. Headlight Screw 102168
8. Headlight Screw 102168
9. Headlight Pivot Plate 162889
10. Slide Bracket 170196
11. Slide Bracket Guide Blocks 178789
11. Slide Bracket Guide Blocks 178789
12. Headlight Cap Trim Strip 163506
13. Slide Bracket Roller Bearing Assembly 178989
13. Slide Bracket Roller Bearing Assembly 178989
14. Slide Adjustment Wedge 179489
15. Headlight Leads Clear Insulation Tube 606889
16. Headlight Lead Wires Cable Tie 608089
17. Slide Bracket Torx Screw 232497
17. Slide Bracket Torx Screw 232497
18. Slide Bracket Torx Screw 232497
18. Slide Bracket Torx Screw 232497
19. Headlight Cap LED Bracket 163906
20. Guide Block Slide Torx Screw 234397
20. Guide Block Slide Torx Screw 234397
20. Guide Block Slide Torx Screw 234397
21. Slide with Centering Spring Assembly 676595
22. Handle Pivot Spring Assembly with Boot 671906
23. Headlight Lead Wires 120 Volt 603806S
24. Tilt Latch Knob Kit 677506A
25. Handle Pivot Spring and Slide Torx Screw 233897
26. Handle Pivot Spring Assembly Rub 178606S
Kirby Sentria (G10) Motor Unit Assembly

Kirby Sentria (G10) Motor Unit Assembly
Item Part Number
1. Motor Housing 100189
2. Front Bearing Retainer Ring 101076
3. Field Screw 104689
3. Field Screw 104689
4. Front Bearing Plate Assembly with Motor 105793
5. Carbon Brush and Holder Assembly 107189
5. Carbon Brush and Holder Assembly 107189
6. Brush Holder Screw 107989
6. Brush Holder Screw 107989
7. Power Switch 110590
8. Rear Bearing 115589
9. Rear Bearing Finger Spring 115674
10. Front Bearing 116073
11. Fan Assembly 119096
12. Motor Mount Clip and Torx Screw 602289
12. Motor Mount Clip and Torx Screw 602289
13. Motor Sprocket Gear 243503
14. Bearing Plate Screw 600189
14. Bearing Plate Screw 600189
15. Motor Seal 600389
16. Bearing Plate Field Screw Nut 600589
16. Bearing Plate Field Screw Nut 600589
16. Bearing Plate Field Screw Nut 600589
16. Bearing Plate Field Screw Nut 600589
17. Motor Sprocket Gear Clip 601689
18. Right Short Brush Lead Wire 602889
19. Power Switch Screw 605989
20. Headlight Lead Wires Cable Tie 608089
21. Static Wire Assembly 603589
22. Motor Housing Tolerance Ring 612795
23. Armature Assembly with Rear Bearing 114789
24. Left Long Brush Lead Wire 602989
25. Motor Assembly with Fan and Power Switch 101393
26. Rear Motor Mount Torx Screw 231995
26. Rear Motor Mount Torx Screw 231995
27. Rear Bearing Static Washer 601889
28. Field Coil 103989
29. Power Switch Oversized Screw 609390
30. Brush Holder Oversized Screw 609490
31. Headlight Jumper Wire 607189

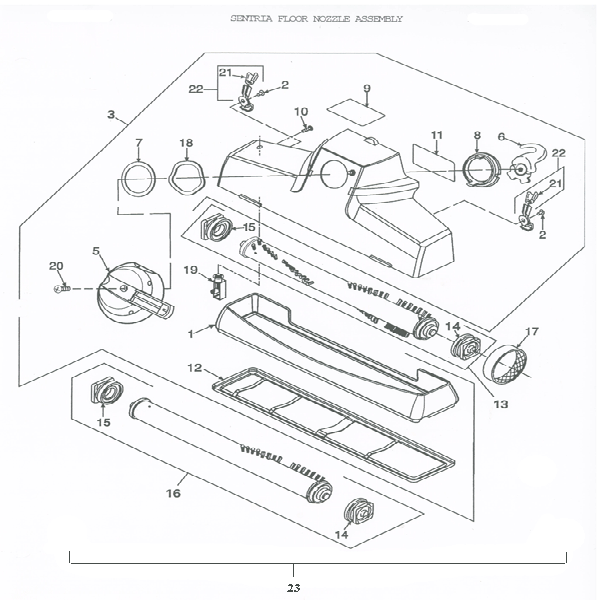

Kirby Sentria (G10) Floor Nozzle Assembly

Kirby Sentria (G10) Floor Nozzle Assembly
Item Part Number
1. Nozzle Bumper 140406
2. Rug Plate Latch Rivet 141381
2. Rug Plate Latch Rivet 141381
3. Floor Nozzle Assembly Less Brush 141606S
5. Belt Lifter Assembly 159206
6. Belt Lifter Hook 144291
7. Belt Lifter Flat Washer 144681
8. Plastic Belt Lifter Cap Bearing 145481
9. Belt Lifter Instruction Label 146606S
10. Power Switch Screw 605989
11. Brush Roll Adjustment Label 149806S
12. Rug Plate 152689
13. Oblique Angled Diamond Brush Roll 152505
14. Small Brush Roll End Cap 156393
14. Small Brush Roll End Cap 156393
15. Large Brush Roll End Cap 156493
15. Large Brush Roll End Cap 156493
16. Delicate Carpet Single Row Brush Roll 159398
17. Knurled Brush Belt 301291
18. Belt Lifter Spring Washer 314890
19. Brush Performance Indicator Sensor Assembly 640393
20. Belt Lifter Torx Screw 232501S
21. Rug Plate Latch Sleeve 640589
21. Rug Plate Latch Sleeve 640589
22. Rug Plate Latch Assembly 640689
22. Rug Plate Latch Assembly 640689
23. Floor Nozzle Assembly with Brush 139906G
Kirby Sentria (G10) Floor Care Kit with Miracle Waxer

Kirby Sentria (G10) Floor Care Kit with Miracle Waxer
Item Part Number
1. Care Kit Nozzle Warning Label Floor
2. Belt Lifter Assembly 159206
3. Belt Lifter Hook 144291
4. Belt Lifter Flat Washer 144681
5. Plastic Belt Lifter Cap Bearing 145481
6. Floor Care Kit Nozzle Baggle Strip 301006S
7. Smooth Black Floor Polisher Belt 301289
8. Floor Care Kit Brush Assembly with Belt 313292
9. Belt Lifter Spring Washer 314890
10. Belt Lifter Torx Screw 232501S
12. Floor Care Kit Nozzle Assembly 312906S
14. English Miracle Waxer Roller Only 480896
15. Miracle Waxer Handle Assembly 480495
16. Bare Floor Duster Pad Assembly 205999
Kirby Sentria (G10) Transmission

Kirby Sentria (G10) Transmission
Item Part Number
1. Rear Axle Assembly with Overload Gear Assembly 102095
2. Motor Sprocket Gear and Rear Axle Clip 601689
2. Motor Sprocket Gear and Rear Axle Clip 601689
3. Foot Pedal 110306
4. Transmission Prmary Sprocket Gear 550505
5. Rear Axle Bushing 550889
5. Rear Axle Bushing 550889
6. Power Drive Assembly 552306
7. Primary Drive Gear Belt 554105
8. Rear Axle Right Retainer 555489
9. Rear Axle Left Retainer 555589
10. Rear Wheel Hub Cap 555906
10. Rear Wheel Hub Cap 555906
11. Rear Wheel 556206
11. Rear Wheel 556206
12. Power Drive and Base Torx Screw 230693
12. Power Drive and Base Torx Screw 230693
13. Rear Axle Retainer Torx Screw 556592
14. Pedal Switch Actuating Rod 608789
15. Rear Axle Spring 556689
16. Neutral Drive Pedal Bracket Cam Assembly 557689
17. Neutral Drive Pedal Transmission Base Torx Screw 557789
18. Rear Axle Bearing 557889
18. Rear Axle Bearing 557889
19. Neutral Drive Pedal Cam Assembly 558406
20. Clutch Overload Gear Assembly 559892
21. Rear Axle Ball 561491
22. Rear Axle Ball Retainer 561892
23. Transmission Sprocket Gear Clip 551089

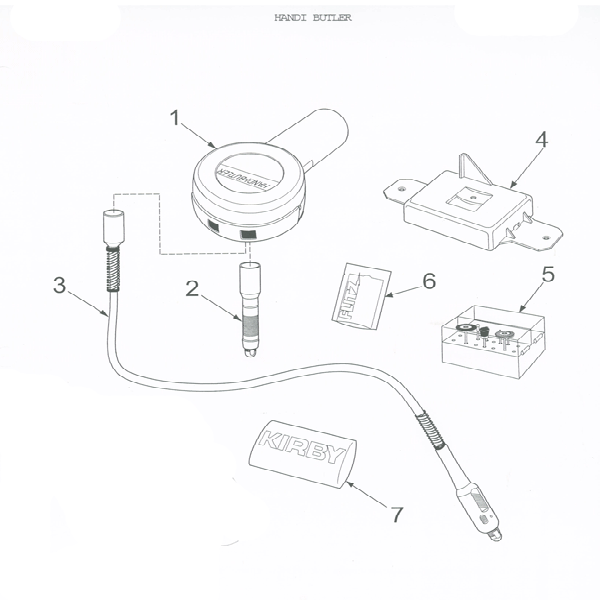

Kirby Sentria (G10) Handi Butler

Kirby Sentria (G10) Handi Butler
Item Part Number
Handi Butler Regular Screw (Not Shown) 406806S
Handi Butler 1 Inch Felt Disc (Not Shown) 406906S
Handi Butler Safety Glasses (Not Shown) 407006
Handi Butler Felt Conical Point (Tip) 3/8 407506S
Handi Butler Mini Wrench (Not Shown) 407606
Handi Butler Lockout Bar (Not Shown) 407706
Handi Butler Angled Key (Not Shown) 407806
Handi Butler Cloth Wheel 1 Inch (Not 407906S
1. Handi Butler Body Assembly 409506
2. Handi Butler Rigid Shaft 407206
3. Handi Butler Flexible Shaft 407306
4. Handi Butler Mounting Cradle 405906
5. Handi Butler Accessory Kit 407106
6. Handi Butler Polishing Compound 407406S
7. Handi Butler Polishing Sponge 255690

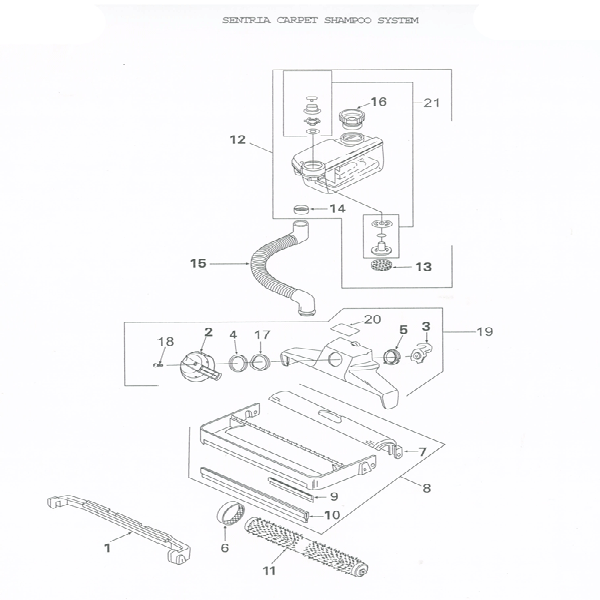

Kirby Sentria (G10) Carpet Shampoo System

Kirby Sentria (G10) Carpet Shampoo System
Item Part Number
1. Carpet Fluffer Shield 313506
2. Belt Lifter Assembly 159206
3. Belt Lifter Hook 144291
4. Belt Lifter Flat Washer 144681
5. Plastic Belt Lifter Cap Bearing 145481
6. Knurled Brush Belt 301291
7. Carpet Shampoo System Tray Shield 304406
8. Carpet Shampoo Tray Assembly with Shield 304706S
9. Carpet Shampoo System Belt Baffle Strip 305206S
10. Carpet Shampoo System Tray Suds Leveler 305406S
11. Carpet Shampoo System Brush Roll 305789
12. Carpet Shampoo System Tank Assembly 306706S
13. Carpet Shampoo System Tank Filter Sponge 307389
14. Carpet Shampoo System Suds Screen 316206S
15. Carpet Shampoo System Hose Assembly 308006S
16. Carpet Shampoo System Tank Measuring Tank 308906S
17. Belt Lifter Spring Washer 314890
18. Belt Lifter Torx Screw 232501S
19. Carpet Shampoo Nozzle Assembly 303106S
20. Carpet Shampoo System Nozzle Warning Label 304206S
21. Carpet Shampoo System Tank Valve Repair 300306S
Sort By:
1
KIRBY SENTRIA EXHAUST DUCT GRILL 104106
List Price: $5.99
Our Price: $4.49
Sale Price: $3.99
You save $2.00!
more info
KIRBY SENTRIA EXHAUST DUCT GRILL 104106
KIRBY SENTRIA EXHAUST DUCT GRILL 104106


1
Talk
STAY CONNECTED

Truck
FREE SHIPPING AVAILABLE
All orders over $75 receive free shipping see details >>
