Kirby Generation VI (G6)

Kirby Generation VI (G6)
Kirby Generation VI (G6) Attachments

Kirby Generation VI (G6) Attachments
ItemPart Number
1. Inflator213801
2. Portable Handle Assembly201399
3. Attachment Grip225199
4. Massage CupPart No Longer Available
5. Intake Guard Assembly224299
6. Kaddy AssemblyPart No Longer Available
7. Spray Gun AssemblyPart No Longer Available
8. Supply Tube Spray Gun250689S
9. Jar Spray Gun251089
10. Crevice Tool Assembly225799S
11. Brush Crevice Tool226157S 5
12. Upholstery Tool218099
13. Extension Wand224099
14. Suds O Cap252099S
15. Wall Ceiling Brush Assembly210899S
16. Brush Strip Wall Ceiling218190
17. Surface Nozzle Assembly215499
18. Duster Brush Assembly218499S
19. Duster Brush Ring220189
20. Attachment Hose Assembly223699S
21. Molded Hose OnlyPart No Longer Available
22. Tube Swivel ConnectorPart No Longer Available
23. Suction Blower Connector210099
24. Wheel Axle Assembly Surface Nozzle216897S 2
25. Polymer Plate Surface Nozzle216299S
26. Brush Strip Surface NozzlePart No Longer Available
27. Suction Relief Upholstery Tool215899
28. Trigger Spray GunPart No Longer Available
29. Venturi Spray GunPart No Longer Available
30. Cover Portable Handle200799S
31. G6 Attachment Set ServicePart No Longer Available
Kirby Generation VI (G6) Base Pan Assembly

Kirby Generation VI (G6) Base Pan Assembly
ItemPart Number
1. Base Pan Assembly604399S
2. O Ring Horn Adapter601996S
3. Rivet Horn Adapter100689A
4. Exhaust Duct106393
5. Grill Exhaust Duct104199S
6. Screw Exhaust Duct605989A
7. Cord Set With Clip (120 VT)192099
8. Cover Cord Set196099
9. Screw (Torx) Cord Cover232495S

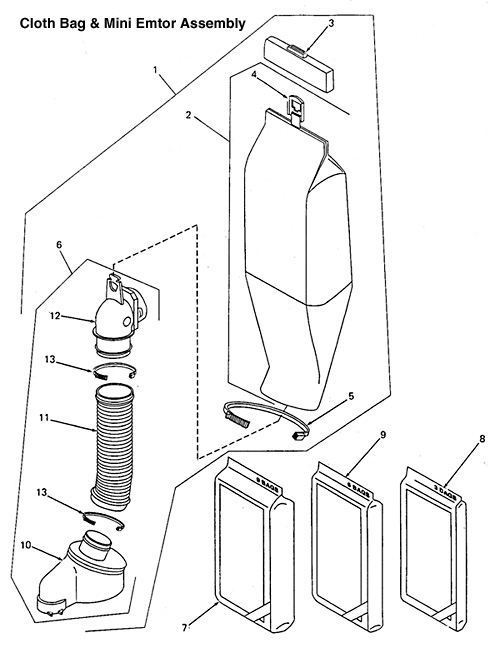

Kirby Generation VI (G6) Cloth Bag & Mini Emtor Assembly

Kirby Generation VI (G6) Cloth Bag & Mini Emtor Assembly
ItemPart Number
1. Bag Mini Emtor Assembly187999G
2. Bag Assembly (With Latch Only)190099
3. Bag Top Cover191899
4. Latch Cloth Bag196499S
5. Bag Clamp Strap196599S
6. Fill Tube Mini Emtor Assembly185899S
7. Micron Magic HEPA Bag (9 pack)197301AW
8. Micron Magic HEPA Bag (3 pack)197201SW
9. Micron Magic HEPA Bag (6 pack)Part No Longer Available
10. Mini Emtor188999
11. Snap Fill Tube190399
12. Snap Top Adaptor190499
13. Fill Tube Tie191182S
13. Fill Tube Tie191182S

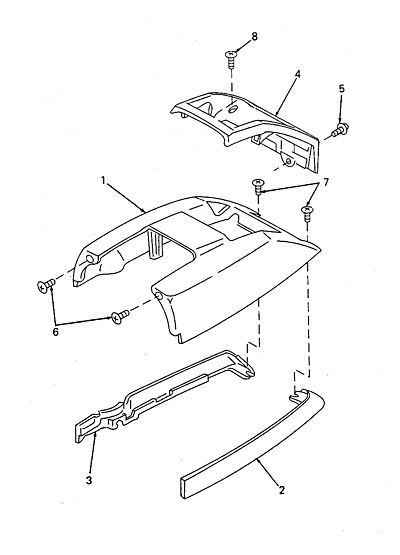

Kirby Generation VI (G6) Cover Shell Assembly

Kirby Generation VI (G6) Cover Shell Assembly
ItemPart Number
1. Cover Less Trim StripsPart No Longer Available
2. Left Trim Strip Cover630999S
3. Right Trim Strip Cover630899
4. Scuff Plate 120 VT111299
5. Screw (Torx) Scuff Plate Rear233405S
6. Screw (Torx) Cover to Fan Case Front232395S
7. Screw (Torx) Cover to Base Pan Rear232495S
8. Screw (Torx) Cord Clip233596S
Kirby Generation VI (G6) Fan Case Assembly

Kirby Generation VI (G6) Fan Case Assembly
ItemPart Number
1. Fan Case Assembly119797S
2. Screw Nozzle Lock1211S
3. Spring Nozzle LockPart No Longer Available
4. Lever Nozzle Lock125297A 2
5. Bezel Power Switch610099S
6. Nozzle Attachment Shift121689S
7. Unigasket Fan Case122097S
8. Wheel Shaft Assembly (Inside Shaft Length 8 7/16")131606S
9. Ratchet Lock631589A
10. Screw (Torx) Front Shaft ClampPart No Longer Available
10. Screw (Torx) Front Shaft ClampPart No Longer Available
11. Clamp Front Shaft134073A
11. Clamp Front Shaft134073A
12. Hubcap Front Wheel131899A
12. Hubcap Front Wheel131899A
13. Front Wheel131999
13. Front Wheel131999
14. Screw (Torx) Fan Case Slide Bracket (Top)Part No Longer Available
14. Screw (Torx) Fan Case Slide Bracket (Top)Part No Longer Available
15. Spring Ratchet Lock1331A
16. Volute Deflector125489
17. Screw (Torx) Fan Case Slide Bracket (Top)Part No Longer Available
17. Screw (Torx) Fan Case Slide Bracket (Top)Part No Longer Available
18. Screw (Torx) Fan Case Base Pan (Bottom)234898S
18. Screw (Torx) Fan Case Base Pan (Bottom)234898S
19. Screw (Torx) Fan Case Base Pan (Flat Head)Part No Longer Available
Kirby Generation VI (G6) Floor Nozzle Assembly

Kirby Generation VI (G6) Floor Nozzle Assembly
ItemPart Number
1. Nozzle Assembly (Less Brush & Belt)141699S
2. Label Belt Lifter673699S
3. Screw (Torx) Belt Lifter232596S
4. Belt Lifter Body Assembly159299S
5. Flat Washer Belt Lifter144681A
6. Spring Washer Belt LifterPart No Longer Available
7. Label Belt Lifter InstructionsPart No Longer Available
8. Label Brush AdjustmentPart No Longer Available
9. Bearing Belt Lifter145481S 10
10. Hook Belt Lifter144291
11. Rug Plate Latch Assembly640689A 2
11. Rug Plate Latch Assembly640689A 2
12. Rivet Latch Assembly141381S 10
12. Rivet Latch Assembly141381S 10
13. Nozzle Bumper140499
14. Kirby Bottom Plate G3-UU152604
15. Brush Roll Assembly152505G
16. Brush End Cap Small156393S 5
17. Brush End Cap Large156493S 5
18. Belt Knurled Brush Roll301291S
19. Sleeve Rug Plate Latch640589s 10
19. Sleeve Rug Plate Latch640589s 10
20. Brush Performance Indicator Assembly640303
21. Screw605989A
Kirby Generation VI (G6) Handle Fork & Grip Assembly

Kirby Generation VI (G6) Handle Fork & Grip Assembly
ItemPart Number
1. Handle Fork Assembly175099G
2. Latch Plate672189
3. Screw Latch Plate233797S
4. Label Handle Fork174399A
5. Kirby Handle Fork Back Cover Black G6673799S
6. Retainer Ring Strain Relief675189S
7. Kirby Screw Handle Fork Back 1CR-UG174996S
8. Cord Hook Swivel173899S
9. Screw Cord Hook Swivel174091A
10. Spring Cord Hook Swivel174167A
11. Handle Grip Assembly675799
12. Rear Cover Assembly673799S
13. Bag Release Button Handle Grip672099
Kirby Generation VI (G6) Headlight Cap/Slide Bracket/Handle Pivot Spring Assembly

Kirby Generation VI (G6) Headlight Cap / Slide Bracket / Handle Pivot Spring Assembly
ItemPart Number
1. Headlight Cap Casting160097
2. Lens Headlight Cap108597
3. Light BulbPart No Longer Available
4. Headlight Frame Bracket161799
5. Screw (Torx) Headlight Pivot to Slide Bracket232495S
5. Screw (Torx) Headlight Pivot to Slide Bracket232495S
6. Headlight Pivot Casting161389
7. Headlight Pivot Bushing161689S 5
8. Headlight Pivot Plate162889S 5
9. Screw (Torx) Plate to Headlight Pivot102168S 25
9. Screw (Torx) Plate to Headlight Pivot102168S 25
10. Slide Bracket Casting894003S
11. Wedge Slide Adjustment179489S
12. Guide Block Slide Bracket178797S
12. Guide Block Slide Bracket178797S
13. Guide Block Slide Torx Screw234397S 10
13. Guide Block Slide Torx Screw234397S 10
13. Guide Block Slide Torx Screw234397S 10
14. Roller Bearing Assembly178989S 10
14. Roller Bearing Assembly178989S 10
15. Slide With Centering Spring Assembly676595S
16. Insulation Tube611192S 5
17. Light Wire With Socket603889S
18. Insulator Sleeve Black660589S 5
19. Insulator Sleeve Clear606889S 5
20. Headlight Jumper Wire607189A
21. Cable Tie Headlight Lead Wires608089S 10
22. 671999G Handle Pivot Spring Assembly with BootPart No Longer Available
23. Tilt Latch Kit Onyx677599A
24. Handle Pivot Spring Assembly Boot178699S
25. Handle Pivot Assembly To Slide Torx Screw233897S
26. Screw232495S
26. Screw232495S
27. Cord Clip Tie230093A 10PK
Kirby Generation VI (G6) Motor Unit Assembly

Kirby Generation VI (G6) Motor Unit Assembly
ItemPart Number
1. Field Coil 120 VT103989
2. Motor Housing With Tolerance RingPart No Longer Available
3. Screw Motor Field104689A
3. Screw Motor Field104689A
4. Nut Field Screw & Bearing Plate600589A 10PK
4. Nut Field Screw & Bearing Plate600589A 10PK
4. Nut Field Screw & Bearing Plate600589A 10PK
4. Nut Field Screw & Bearing Plate600589A 10PK
5. Brush Holder With Brush107110A
5. Brush Holder With Brush107110A
6. Screw Brush Cartridge107989S 10
6. Screw Brush Cartridge107989S 10
7. Screw Power Switch to Motor Housing605989A
8. Armature (with Rear Bearing) 120 VT114789
9. Static Washer 120 VT601889S 10
10. Finger Spring314890S 10
11. Bearing Plate Assembly With Motor Seal105793S
12. Ring Retainer Bearing Plate to Motor Housing101076A
13. Front Bearing116073
14. Screw Bearing Plate600189A 10PK
14. Screw Bearing Plate600189A 10PK
15. Fan Assembly With Spacer Seal119096G
16. Kirby Gear Kit Sprocket/Transmission Gears/Clip243503S
17. Clip Motor Drive601689A
18. Clip & Screw Front Motor MountPart No Longer Available
18. Clip & Screw Front Motor MountPart No Longer Available
19. Power Switch 120 VT110590
20. Brush Lead Assembly Right 120 VT602889A 5
21. Brush Lead Assembly Left 120 VT602989A 5
22. Motor Seal600389S 5
23. Rear Bearing115589
24. Tie Left Brush Lead608089S 10
25. Screw (Torx) Rear Motor Mount231995S 10
25. Screw (Torx) Rear Motor Mount231995S 10
26. Tolerance Ring Bearing Well612795S
27. Oversized Screw Power Switch609390S 10
28. Oversized Screw Brush Holder609490S 10
29. Wire Assembly Static Discharge603589A 5
30. Spacer Seal AssemblyPart No Longer Available
31. Mylar Washer FanPart No Longer Available
32. Fan WasherPart No Longer Available
33. Fan PulleyPart No Longer Available
34. Motor Assembly 120 VTPart No Longer Available
Kirby Generation VI (G6) Power Drive Assembly

Kirby Generation VI (G6) Power Drive Assembly
ItemPart Number
1. Power Drive Assembly With Rear Wheels552399S
2. Hubcap Rear Wheel555999A
2. Hubcap Rear Wheel555999A
3. Rear Wheel556299
3. Rear Wheel556299
4. Clip Rear Wheel601689A
4. Clip Rear Wheel601689A
5. Primary Drive Belt554189S
6. Foot Pedal110399
7. Actuating Rod Foot Pedal to Power Switch612400S
8. Bushing Rear Axle550889S 10
8. Bushing Rear Axle550889S 10
9. Right Retainer Axle555489S 10
10. Left Retainer Axle555589S
11. Screw (Torx) Axle Retainer556592A 10PK
12. Spring Rear Axle555211A
13. Bracket Cam Assembly Neutral Drive Pedal557689A
14. Screw Neutral Drive PedalPart No Longer Available
15. Bearing Rear Axle557889S 2
15. Bearing Rear Axle557889S 2
16. Neutral Drive Pedal Assembly558499A
17. Clutch Overload Gear Assembly559892S
18. Rear Axle With Ball Bearings and Retainer555211A
19. Rear Axle Assembly With Overload Gear Assembly555211A
20. Kirby Gear Kit Sprocket/Transmission Gears/Clip243503S
21. Retainer Axle Ball561892S 10
22. Ball Rear Axle561491A 10PK
23. Screw (Torx) Drive System Base Pan230693A 10PK
23. Screw (Torx) Drive System Base Pan230693A 10PK

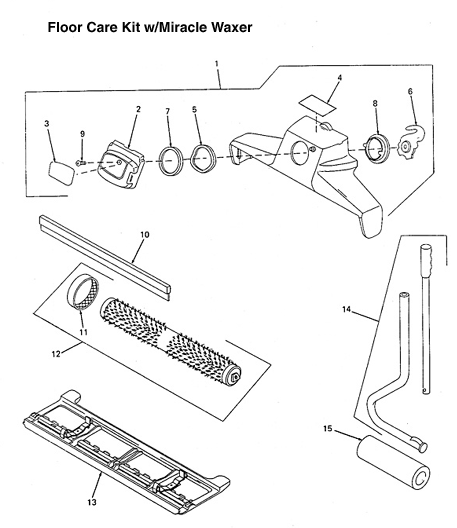

Kirby Generation VI (G6) Floor Care Kit with Miracle Waxer

Kirby Generation VI (G6) Floor Care Kit with Miracle Waxer
ItemPart Number
1. Floor Care Kit Nozzle Assembly Export312999S
2. Belt Lifter Body Assembly159299S
3. Label Belt Lifter673699S
4. Warning Label Floor Care KitPart No Longer Available
5. Spring Washer314890S 10
6. Belt Lifter Hook144291
7. Flat Washer144681A
8. Bearing Belt Lifter145481S 10
9. Screw (Torx) Belt Lifter232596S
10. Baffle Strip301099
11. Brush Belt301291S
12. Brush Belt313292S
13. Bare Floor Duster Pad205906S
14. Miracle Waxer Handle Assembly480495S
15. Miracle Waxer Roller English480707S

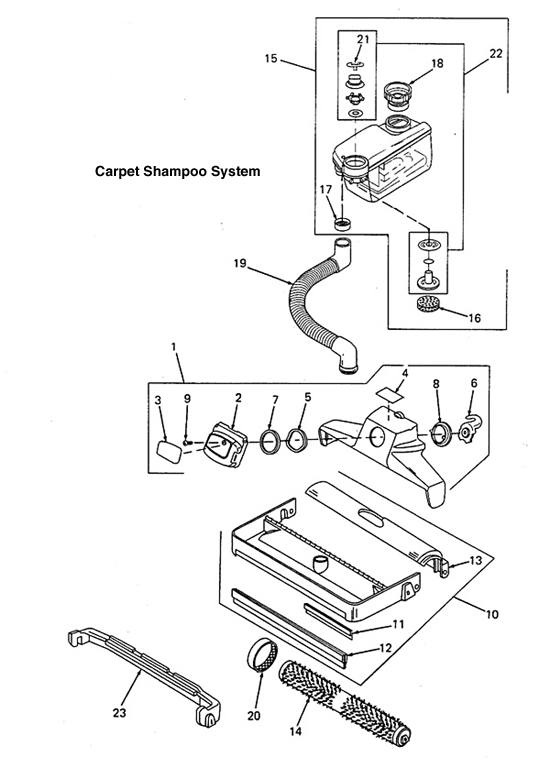

Kirby Generation VI (G6) Carpet Shampoo Assembly

Kirby Generation VI (G6) Carpet Shampoo Assembly
ItemPart Number
CSS Moisture Tray (Not Shown)Part No Longer Available
1. CSS Nozzle Assembly Export303199S
2. Belt Lifter Body Assembly159299S
3. Label Belt Lifter673699S
4. Warning Label CSSPart No Longer Available
5. Spring Washer314890S 10
6. Belt Lifter Hook144291
7. Flat Washer144681A
8. Bearing Belt Lifter145481S 10
9. Screw (Torx) Belt Lifter232596S
10. Tray Assembly With Shield304799S
11. Belt Baffle CSS TrayPart No Longer Available
12. Suds Leveler CSS TrayPart No Longer Available
13. Shield CSS TrayPart No Longer Available
14. Brush Roll Assembly With Axle & Retainer305702
15. CSS Tank Assembly306799S
16. Filter Spong CSS Tank307389S
17. Suds Screen CSS Tank316299S
18. Cap CSS TankPart No Longer Available
19. Hose Assembly CSS308099S
20. Belt301291S
21. CSS WedgePart No Longer Available
22. Valve Assembly CSS Tank300399S
23. Carpet Fluffer ShieldPart No Longer Available
Talk
STAY CONNECTED

Truck
FREE SHIPPING AVAILABLE
All orders over $75 receive free shipping see details >>
