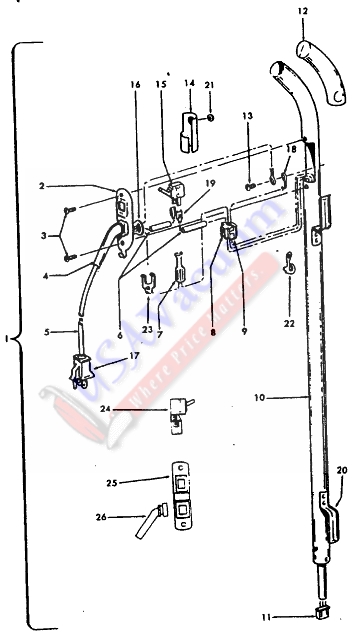

Hoover U7037 Commercial Upright Vacuum Parts List & Schematic

Item	Part Number
1. Motor Hood Guard	Part No Longer Available
2. Nameplate	Part No Longer Available
3. Motor Hood	Part No Longer Available
4. Screw (4)	Part No Longer Available
5. Screw (7)	22368011
6. Lock Washer (4)	14062
7. Jumper Lead - Green	Part No Longer Available
8. Screw	Part No Longer Available
9. Handle Socket Assembly	Part No Longer Available
10. Handle Socket & Leads	Part No Longer Available
11. Phenolic Tubing	Part No Longer Available
12. Motor Lead Spring	Part No Longer Available
13. Screw (2)	Part No Longer Available
14. Lock Washer (2)	Part No Longer Available
15. Handle Socket Lock Ring (2)	Part No Longer Available
16. Handle Support Spring	Part No Longer Available
17. Handle Support Spring Bushing	Part No Longer Available
18. Handle Support Shaft	Part No Longer Available
19. Screw	Part No Longer Available
20. Lock Washer	19772
21. Motor Felt Gasket	Part No Longer Available
22. Retainer (6)	45481
23. Handle Control Lever Spring	652541
24. Handle Control Lever Shaft	Part No Longer Available
25. Screw (2)	Part No Longer Available
26. Bag Flange Latch Assembly	33491
27. Main Casting / Shroud Complete	Part No Longer Available
28. Bag Flange & Gasket Assembly	45404
29. Nut - Special	15854EF
30. Screw	17206
31. Outer Bag	Part No Longer Available
32. Bag Closure Clip & Spring	43362
33. Bag Support Spring	Part No Longer Available
34. Not Available	Part No Longer Available
35. Nut (2)	162237
36. Rivet (4)	Part No Longer Available
37. Rear Wheel (2)	Part No Longer Available
38. Hub Cap (4)	Part No Longer Available
39. Rear Wheel Shaft	652769
40. Bag Protector	Part No Longer Available
41. Screw (4)	Part No Longer Available
42. Nozzle Adjustment Bracket	Part No Longer Available
43. Screw (2)	Part No Longer Available
44. Front Wheel Shaft (2)	Part No Longer Available
45. Front Wheel (Bakelite) (2)	800864
45. Front Wheel (Rubber) (2)	Part No Longer Available
46. Belt Guard	Part No Longer Available
47. Bottom Plate Gasket	Part No Longer Available
48. Rivet (2)	Part No Longer Available
49. Bottom Plate Complete	Part No Longer Available
50. Rear Wheel Shaft Clamp (2)	Part No Longer Available
51. End Plate Support - R.H.	41436502
52. End Plate Support - L.H.	41436501
53. Belt	49258AG
54. Rivet (9)	21256203
55. Shroud	Part No Longer Available
56. Lead Wire Holder	Part No Longer Available
57. Screw (4)	900505
58. Screw	Part No Longer Available
59. Lock Washer	Part No Longer Available
60. Handle Control Lever	Part No Longer Available
61. Handle Control Lever Foot Pad	38411502
62. Dirt Finder Socket Assembly	Part No Longer Available
63. Dirt Finder Lamp	42241
64. Screw (2)	Part No Longer Available

Item	Part Number
1. Agitator- 4B with Brushes	Part No Longer Available
Agitator - 2B without Brushes	Part No Longer Available
2. Thread Guard	Part No Longer Available
3. Felt Washer	Part No Longer Available
4. Bearing	12978
5. Washer	21347003
6. Screw	46875
7. Brush - Short - Nylon	Part No Longer Available
7. Brush - Short - Horsehair	Part No Longer Available
8. Brush- Long- Nylon	Part No Longer Available
8. Brush - Long - Horsehair	Part No Longer Available
9. Shaft	40865

Item	Part Number
Brush - Long - Horsehair	Part No Longer Available
Brush - Short- Horsehair	Part No Longer Available
Brush - Long - Nylon	Part No Longer Available
Brush - Short - Nylon	Part No Longer Available
Brush- Long- Horsehair	Part No Longer Available
Brush - Short- Horsehair	Part No Longer Available
Brush - Long - Nylon	Part No Longer Available
Brush - Short- Nylon	Part No Longer Available

Item	Part Number
1. Handle Complete - 2W	Part No Longer Available
1. Handle Complete - 3W	Part No Longer Available
2. Switch Plate	23138AW
3. Screw	21465314
4. Cord Protector	Part No Longer Available
5. Cord - 3W - 50 Ft.	46583148
5. Cord	Part No Longer Available
5. Cord - 2W - 35 Ft.	46383137
6. Tubing	Part No Longer Available
7. Insulated Terminal	12227
8. Strain Relief Body	Part No Longer Available
9. Strain Relief Lock	12261
10. Handle Shell	Part No Longer Available
11. Socket - 3W	Part No Longer Available
11. Socket - 2W	Part No Longer Available
12. Handle Grip	Part No Longer Available
13. Screw	Part No Longer Available
14. Insulating Sleeve	Part No Longer Available
15. Switch - Slip Terminal	Part No Longer Available
16. Retainer	18676
17. Service Plug - 3W	Part No Longer Available
17. Service Plug - 2W	Part No Longer Available
18. Terminal	Part No Longer Available
19. Terminal	Part No Longer Available
20. Cord Clip	Part No Longer Available
21. Pad	Part No Longer Available
22. Bag Hook	Part No Longer Available
23. Retainer	Part No Longer Available
24. Switch - Screw Terminal	Part No Longer Available
25. Switch Plate	Part No Longer Available
26. Cord Protector - Square Neck	Part No Longer Available

Item	Part Number
Motor - Less Fan	43177558
1. Screw	Part No Longer Available
2. Screw	900505
3. Upper Motor Bearing	42934002
4. Screw	Part No Longer Available
5. Lock Washer	Part No Longer Available
6. Brush Holder Insulator	Part No Longer Available
7. Carbon Brush Retainer	Part No Longer Available
8. Carbon Brush & Spring	47318502
9. Ventilating Fan	Part No Longer Available
10. Motor Lead Spring Holder	Part No Longer Available
11. Upper Motor Casing & Brush Holder	Part No Longer Available
11. Upper Motor Case - 91	19857
12. Armature	Part No Longer Available
12. Armature - 91	Part No Longer Available
13. Field	45412506
13. Field - 91	Part No Longer Available
14. Lower Motor Casing	Part No Longer Available
15. Field Bolt	Part No Longer Available
16. Fan Spacer	Part No Longer Available
17. Washer	169241AW
18. Fan	38755011
18. Fan - 91	22556
19. Fan Pulley	Part No Longer Available
20. Lock Washer	14062
21. Hex Nut	15673
22. Lead Wire Holder	45517
23. Screw	21772501
24. Washer	14062
25. Lower Bearing	19829
26. Washer	19772
27. Nut	Part No Longer Available

Item	Part Number
1. Furniture Brush	Part No Longer Available
4. Dusting Brush	43414064
6. Swivel Connector	38644040
7. Split Ring	33712007
8. Brush Back	48447001
9. Floor Brush	43414073
10. Furniture Nozzle	43414057
11. Crevice Tool	38617017
12. Extension Tube	43453027
13. Gasket	Part No Longer Available
14. Extension Tube - Curved - 17"	43466040
Extension Tube - Curved - 22"	43466037
24. Converter Body Assembly	Part No Longer Available
25. Cleaning Tool Bag	Part No Longer Available
26. Hose Connector - Short (Use with Continuous Convolution Hose)	Part No Longer Available
26. Hose Connector - Short (Use with Circular Ribbed Hose)	Part No Longer Available
27. Hose Assembly Complete	Part No Longer Available
27. Hose - Less Ends (Circular - Ribbed)	Part No Longer Available
28. Hose Sleeve (Use with Continuous Convolution Hose)	32156010
28. Hose Sleeve (Lndudes Hose Sleeve & Tubing) (Use with Circular Ribbed Hose)	12131
29. Hose Connector Collar (Use with Continuous Convolution Hose)	36116006
29. Hose Connector Collar (Use with Circular Ribbed Hose)	36171025
30. Hose Connector Curved with Rings (Use with Continuous Convolution Hose)	43466044
30. Hose Connector Curved Wllatch Ring (Without Suction Regulator) (Use with Circular Ribbed Hose)	Part No Longer Available
31. Suction Control Ring	38711006
33. Latch Ring	36153009
34. Hose Assembly Complete - Front Conversion (Continuous Convolutions) (Without Suction Regulator)	Part No Longer Available
34. Hose Assembly Complete - Front Conversion (Circular Ribbed) (Without Suction Regulator)	Part No Longer Available
47. Extension Tube	Part No Longer Available
48. Extension Tube	3863801P

Item	Part Number
28. Sleeve	32156010
48. Converter	Part No Longer Available
49. Hose Converter Collar	Part No Longer Available
50. Hose Tube Curved	Part No Longer Available
51. Hose Grip Collar	12704BZ
52. Converter	Part No Longer Available
53. Hose Grip	23393JM
55. Hose Tube Curved	Part No Longer Available
59. Hose - Ultraflex (Commercial) (Use with Converter 34202 Or 35190)	22671JM
60. Hose End Short	Part No Longer Available
63. Converter (Use with Hose 22671)	35190
64. Converter (Use with Hose 22671)	Part No Longer Available
65. Hose Less Ends	Part No Longer Available
66. Hose Less Ends	Part No Longer Available
67. Hose - Tufflex (Standard Rear Conversion)	Part No Longer Available
Ultraflex Hose - 50' Length	Part No Longer Available
Tufflex Hose - 50' Length	Part No Longer Available
