You are here: Home > HOOVER > HOOVER PARTS & SCHEMATICS BY MODEL > Upright Vacuum Parts (U Series)
 > U3319 - Concept Upright Vacuum
We found 0 results matching your criteria.
Hoover U3319 - Concept Upright Vacuum
ItemPart Number
01. Thread Guard U3101/3 Part No Longer Available
01. Agitator Assm Comp - U3315-070, U3341-900, U3721-910, U3729-910 48414019
01. Agitator Assm Comp-U U3315, U3317, U3319-9, U3319-970, U3321, U3323, U3329, U3331, U3335, U3721-930, U3737-910, U3745-910 Part No Longer Available
02. Agitator Bearing Asm 43267002
03. Conical Washer 21347003
04. Agitator End Pulley Part No Longer Available
05. Agitator Br-Natural U3315-070, U3341-900, U3721-910, U3729-910 48445016
05. Agitator Brush--9 Mi 48445019
07. Belt-Concept 1 Agita 38528008
08. Agitator Shaft 1170 Part No Longer Available
09. Agitator End Part No Longer Available
10. Thread Guard U3101/3 41435018

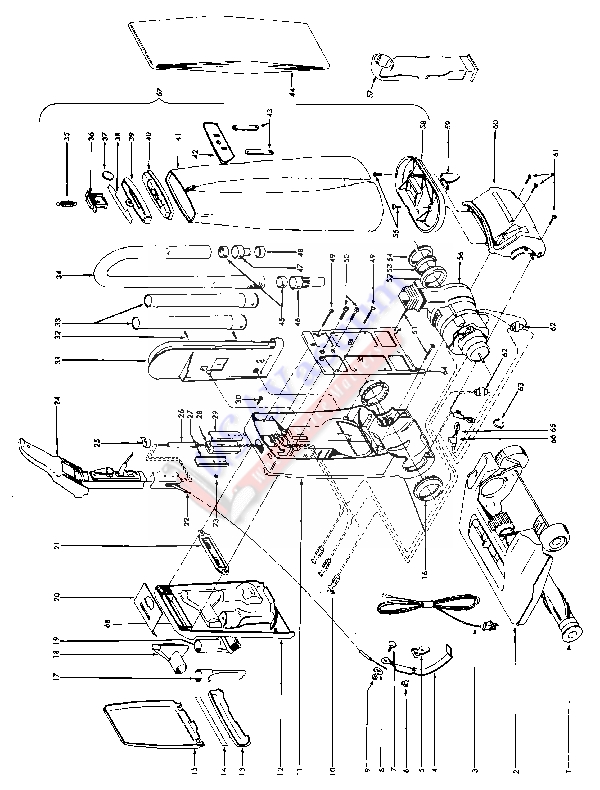

Hoover U3319 - Concept Upright Vacuum
ItemPart Number
01. Agitator Assem Comp- 48414013
01. Agitator Assm Comp - U3729-910 48414019
01. Agitator Assm Comp-U U3737-910 Part No Longer Available
03. Attach. Cord - 35' 46383315
04. Acutator Bar Assem-U 43143096
05. Pivot Bearing - Ag - Part No Longer Available
06. Nut 160079AW
07. Bolt 1170 Part No Longer Available
08. Washer 1170 Part No Longer Available
09. Nut 21641623
10. Terminals-0513 12227
11. Front Housing Assembly-U3737- U3737-910, U3737-930 - Incl. It'S 23 & 26-30 42253048
11. Front Housing Assembly-U3729- U3729-910, U3729-930 - Incl. It'S 23 & 26-30 42253085
12. Front Cover-U3729-91 W/O Nameplates - U3729-910, U3729-930 (Ref. It'S 14 & 68) 37254081
12. Front Cover-U3737-91 W/O Nameplates - U3737-910, U3737-930 (Ref. It'S 14 & 68) 37254082
13. Lens/Shield Assm-U33 48111006
14. Front Cover Nameplat 51638046
15. Tool Door 37257003
16. Pivot Bearing-U3101/ 38511002
17. Crevice Tool - Ag 38617024
18. Furniture Nozzle-Ag 38614029
19. Dusting Brush 43414145
20. Housing Cover-U3721/ 37951006
21. Ft Cover Insert-Ag-U Part No Longer Available
22. Control Cable - U332 Part No Longer Available
23. Washer 168278AY
26. Insulating Tube-U330 31735007
27. Handle Mounting Bracket-Ft Ha Part No Longer Available
28. Handle Insulator Supp-U Part No Longer Available
29. Handle Mounting Bracket-Rear 35152011
30. Rivet-U3301-U4211 Part No Longer Available
31. Hose Rack 36433090
32. Screw-Self Tapping 21447217
33. Extension Tube-Ag U3729-910, U3729-930 38634078
33. Extension Tube Assm- U3737-910, U3737-930 43452010
34. Hose Part No Longer Available
35. Spring U3101 U3103 38334002
36. Drawer-Ag-U4381-930 U3737-91 0, U3737-930 Part No Longer Available
37. Air Freshner Tablet- U3737-910, U3737-930 Part No Longer Available
38. Bag Cover Nameplate- U3737-910, U3737-930 51639104
39. Bag Cover-U3721/29-9 U3729-910, U3729-930 37959084
39. Bag Cover-U3737/45-9 U3737-910, U3737-930 Part No Longer Available
40. Hanger-U3737/45-910 U3737-910, U3737-930 Part No Longer Available
40. Hanger-U3721/29 U3729-910, U3729-930 Part No Longer Available
42. Jacket Support-Jm 36425037
43. Jacket Retainer Part No Longer Available
44. Aller Filt Bag A Throw Away Bag (3 Pak) 4010100A
45. Hose Connector Collar 36116014
46. Hose Adapter-Ag 32288011
47. Hose Connector 32377004
48. Hose Gasket 31178013
49. Screw-U3301/U4211 21447025
50. Screw Part No Longer Available
51. Screw-U3301/U4211 21447019
52. Motor Mount-U3101/3 32175011
53. Seal Ring Part No Longer Available
54. Mount Ring - U3101/3 32155006
55. Screw 21447012
56. Motor Assembly - U33 43576074
57. Top Fill Tube Part No Longer Available
58. Jacket Bottom 36425008
59. Cord Wrap-Lower 39442040
60. Motor Cover-U3729-91 Motor Cover - U3729-910, U3729-930 37195098
60. Motor Cover-U3737-91 Motor Cover - U3737-910, U3737-930 37195099
61. Screw 21447013
62. Connector 27617103
63. Cable Tie 27479307
64. Rear Cover-Jm 37257092
65. Lamp 27313101
66. Lamp Socket Assy U31 47176001
67. Outer Bag - Concept U3729-910, U3729-930 Part No Longer Available
67. Jacket Assem Comp-U3 U3737-910, U3737-930 Part No Longer Available
68. Housing Nameplate (Powermax) 52115180
68. Housing Nameplate (Powermax) - U3729-930, U3737-930 52115194
69. Roller Pin Front Housing 012097AW
69. Washer-Pd Trans 19555
69. Wrench-Special Conce This Is A 1/2", 12 Point, Deep Offset Box Wrench Part No Longer Available
69. Washer Front Housing Roll 21312705
69. Screw 21447003
69. Roller (Front Housing/Valve 31322001
69. Retainer Part No Longer Available
69. Light Barrier-U3729/ 34161008
69. Lower Support 58211013
69. Front Support-U3301 58249004
69. Top Handle Support U3729-930, U3737-930 58268002
69. Handle Support U3729-930, U3737-930 58341010
69. Handle Support 58385015
Hoover U3319 - Concept Upright Vacuum
ItemPart Number
01. Handle Tube Nameplat U3721-91 0 51669050
01. Handle Tube Nameplat U3729-91 0 51669051
01. Handle Tube Nameplat U3737-91 0 51669052
01. Handle Tube Nameplat U3745-91 0 51669053
01. Hdl Tube Nmpl-U3729- U3729-930, U3737-930, U3745-930 51669059
02. Handle Support - Ag 36957012
03. Drive Control Pin-Ag Part No Longer Available
04. Switch Button - Ag - Part No Longer Available
05. Handle Grip-Upper Ha Incl. Items 3,4,7 48663153
06. Handle Sleeve-U3321/ 31754002
07. Switch Actuator - Ag Part No Longer Available
08. Control Cable - U332 Part No Longer Available
08. Control Cable Tube-A Part No Longer Available
09. Switch 28179021
10. Terminal 27666702
11. Shield 37258082
12. Terminals-0513 12227
13. Label 51869001
15. Handle Support Plate 34777017
16. Screw-Self-Tapping 21447218
17. Handle Grip-Lower Half- Part No Longer Available
18. Screw 21447041
19. Screw-S1059 21447122
20. Handle Cover/Cord Re Part No Longer Available
21. Handle Tube-U3729/37 W/O Nameplate & Label (Ref. It'S. 1 & 13) - U3729-910, U3729-930, U3737-910, U3737-930, U3745-910, U3745-930 39467071
21. Handle Tube-U3721-91 W/O Nameplate & Label (Ref. It'S. 1 & 13) - U3715-930, U3721-910, U3721-930, U3725-930 39467078
22. Attach. Cord - 35' 46383315
23. Cord Retainer-Conver 34253010
24. Lead Wire (Sw/Mtr) 46513008
25. Lead Wire-S2099/S210 (Switch/Conn./ Attach. Cord) 46143064
Hoover U3319 - Concept Upright Vacuum
ItemPart Number
01. Bottom Plate - Ag (Use With Molded Agitator) - U3729-930, U3737-930, U3745-930 Part No Longer Available
02. Lock Ring Part No Longer Available
03. Agitator Pulley Seal 38781006
04. Wheel Cover Part No Longer Available
05. Rear Wheel 38522029
06. Washer 21312772
07. Handle Release Lever-L. Part No Longer Available
08. Spring 38335014
09. Bearing-U3101/3-U420 Part No Longer Available
10. Screw 017001FW
11. Frame-L.H.-Ag 35476012
12. Lock Ring Part No Longer Available
13. Keylock-1170 160040AY
14. Belt-Pd/Concept 1 Dr 160147AG
15. Nut 160031
16. Drive Pulley-Concept 38537001
17. Power Drive Unit (Inc. Items 10, 12, 13(2), 15, 16, 18, 19, 49, 51, 52, 57 And Drive Wheels(2)) 43124013
18. Roller-U3101 U3103 Part No Longer Available
19. Lock Ring Part No Longer Available
20. Screw 21447014
21. Seal 12173
22. Agitator Hsg/Valve A Valve Assem. Part No Longer Available
23. Pin 31522016
24. Agitator Clip U3101/ Part No Longer Available
25. Screw-Self Tapping 21447217
26. Hood Nameplate 52115179
26. Hood Nameplate U3721-930, U3729-930, U3737-930, U3745-930 52115195
27. Noz. Adj. Lever-Aay- U3721-910, U3721-930 38421080
27. Noz. Adj. Lever-Abb- U3729-910, U3729-930 38421081
27. Noz. Adj. Lever-Abm- U3737-910, U3737-930 38421082
27. Noz. Adj. Lever-Ag-U U3745-910, U3745-930 38421083
28. Air Intake Assem-U37 U3721-910, Part No Longer Available
28. Air Intake Assem-U37 U3729-910, Part No Longer Available
28. Air Intake Assem-U37 U3737-910, 37257167
28. Air Intake Assem-U37 U3745-910, 37257168
29. Seal Part No Longer Available
30. Speed Nut 21362006
31. Spring 38351016
32. Cam-He 38563018
33. Hood Support Part No Longer Available
34. Detent Spring-U3101 34751002
35. Screw-S2095/97/99 21447203
36. Furniture Guard Part No Longer Available
37. Screw-S2095/97/99 21447203
38. Agitator Hsg Brkt-R. 35476027
39. Screw - Self Tapping 21447229
40. Valve Duct Cover Part No Longer Available
41. Valve Door 38718006
42. Duct Seal 34513006
43. Agitator Hsg. Brkt.- 35476016
44. Screw - Self Tapping 21447229
45. Flat Washer 21312801
46. Valve Drive Crank 38567006
47. Valve Spring 36132001
48. Actuator Ring Part No Longer Available
49. Lifter-R.H. Part No Longer Available
50. Drive Wheel Complete 163340AG
51. Wheel (P.D. Unit) Part No Longer Available
52. Screw-Self Tapping 21479782
53. Lifter-L.H. 38562010
54. Handle Release U3101 38452048
55. Bottom Plate Duct Se Part No Longer Available
56. Rear Axle U3101-U310 32547002
57. Frame Assembly-Rh-Ag Part No Longer Available
58. Hdl Release Lever-R. Part No Longer Available
59. Hood Assem-Aay-U3721 W/O Nameplate (Ref. It. 26) - U3721-910, U3721-930 Incl. It. 27-36 Part No Longer Available
59. Hood Assem-Abb-U3729 W/O Nameplate (Ref. It. 26) - U3729-910, U3729-930 Incl. It. 27-36 42252311
59. Hood Assem-Abm-U3737 W/O Nameplate (Ref. It. 26) - U3737-910, U3737-930 Incl. Lt.'S 27-36 42252312
59. Hood Assem-Ag-U3745- W/O Nameplate (Ref. It. 26) - U3745-910, U3745-930 42252313
Hoover U3319 - Concept Upright Vacuum
ItemPart Number
01. Screw 21479573
01. Motor Assembly - U33 43576074
02. Motor Mount-L H U310 32162003
03. Brush & Term Assm-U7 47315010
04. Brush Carrier Assm-U 47318008
05. Spring U3101/3 U4201 38353004
06. Screw-U7069/71 21479302
07. Motor Housing Assembly U3101 Part No Longer Available
08. Armature-Concept-Pd- 44765065
09. Field Assem Comp - U 45317027
10. Spring 12854
11. Fan Chamber Assy U31 Part No Longer Available
12. Seal-U3101/3 U4201/3 Part No Longer Available
13. Tape - Concept Motor Part No Longer Available
14. Fan U3101/3 U4201/3 Part No Longer Available
15. Washer Part No Longer Available
16. Nut-S3005 33426001
17. Fan Cover Part No Longer Available
