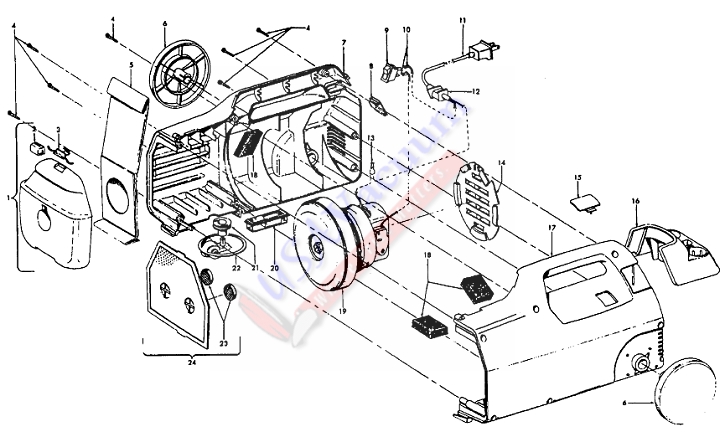

Hoover S1337 Portapower Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Bag Door Assembly - AG 42227173
2. Latch Button - AAP Part No Longer Available
2. Latch Button - AG 38426086
3. Latch - BZ 36151022
4. Screw - Self Tapping (7) 21447122
5. Disposable Bag (5 Pack) 4010063R
6. Wheel - AG Part No Longer Available
7. Housing Assembly - RH/LH - AAR - S1323 42222171
7. Housing Assembly - RH/LH - AAM - S1329 42222175
7. Housing Assembly - RH/LH - LT - S1319 42222186
7. Housing Assembly - RH/LH - ACA - S1337, S1420 42212131
7. Housing Assembly - RH/LH - AG - S1339 42222189
8. Cord Slot Filler - MW 37911090
8. Cord Slot Filler - AG 37911091
9. Switch Assembly 28161063
10. Terminal 27666527
10. Terminal - S1420 27666553
11. Attachment Cord Assembly AAP - S1319, S1323, S1329 46383264
11. Attachment Cord Assembly - AG - S1337, S1339, S1420 46363115
12. Cord Protector Part No Longer Available
13. Insulated Terminal 12227
14. Baffle - MW 38763008
15. Cord Reel Plug - AAR - S1323 38422150
15. Cord Reel Plug - AAM - S1329 38422153
15. Cord Reel Plug - LT - S1319 38422166
15. Cord Reel Plug - ACA - S1337 38422168
15. Cord Reel Plug - AG - S1339 38422172
16. Tool Rack - AAP 36433072
16. Tool Rack - AG - S1337, S1339 36433089
17. Housing Assembly - RH/LH - AAR - S1323 42222171
17. Housing Assembly - RH/LH - AAM - S1329 42222175
17. Housing Assembly - RH/LH - LT - S1319 42222186
17. Housing Assembly - RH/LH - ACA - S1337, S1420 42212131
17. Housing Assembly - RH/LH - AG - S1339 42222189
18. Motor Snubber (3) 34141020
19. Motor Assembly Complete - S1323, S1337 (6.8 Amp), S1339, S1420 43576083
19. Motor Assembly Complete - S1319, S1329 43578067
20. Bag Indicator Assembly - KM/BU - S1323, S1329 51151024
Hole Plug - LT - S1319 37911064
Hole Plug - AG - S1337, S1339 37911065
21. Caster Housing - JM 38411057
22. Wheel Carrier Assembly - AG 41432040
23. Pressure Pad (2) 163434
24. Bulkhead Assembly - MW 43615053
Crevice Tool - AAP 38617017
Furniture Nozzle - AAP 38614024
Dusting Brush - AG 43414064
Rug & Floor Nozzle - AAP 0M114169
Extension Tube - Poly - AG 3863801P
Hose Assembly Complete - With SC - ABX 43434243
Hose Assembly Complete - AAZ / AAP - S1319 43434157
Crevice Tool - AG - S1337, S1339 38617017
Furniture Nozzle - AG - S1337, S1339 38614024
Dusting Brush - AG - S1337, S1339 43414064
Extension Tube - Poly - AG - S1337, S1339 3863801P
Rug and Floor Nozzle - ABE / ABE - S1331 0M114169
Rug and Floor Nozzle - ABF / AG - S1339 Part No Longer Available
Hose Assembly Complete - ABX / AG - S1337, S1339 43434157
Crevice Tool - AG - S1420 38617017
Furniture Nozzle - AG - S1420 38614024
Dusting Brush - AG - S1420 43414064
Extension Tube - AG - S1420 3863801P
Rug & Floor Nozzle - S1420 43414172
Hose Assembly Complete - S1420 43434157
Hoover S1337 Portapower Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Nut 12028
2. Washer - FW (2) Part No Longer Available
3. Motor Gasket 31178008
4. Fan Cover 37196065
5. Fan 43551008
6. Diffuser Assembly Complete - S1311, S1311-020, S1323, S1347 43551027
6. Diffuser Assembly Complete - Molded (43576113 Motor) - S1319, S1329, S1335, S1349 43551030
6. Diffuser Assembly Complete - Molded - S1315, S1337, S1339, S1353, S1420 43551029
7. Bearing Retainer Plate - AY 31165003
8. Armature Assembly Complete - S1311, S1311-020, S1315, S1323, S1337, S1339, S1347, S1353, S1420 44765138
8. Armature Assembly Complete - S1319, S1329, S1335, S1349 44765220
9. Spring (2) 38353004
10. Screw (2) 21429406
11. Brush Carrier (2) - S1311, S1311-020, S1315, S1323, S1337, S1339, S1347, S1353, S1420 167696AG
11. Brush Carrier (2) - S1319, S1329,S1335, S1349 Part No Longer Available
12. Brush Holder (2) - Use Brush Carrier Assembly 47318008 (Includes Items 9, 11, 12, 13) - S1311, S1311-020, S1315, S1323, S1337, S1339, S1347, S1353, S1420 Part No Longer Available
12. Brush Holder (2) - S1319, S1329, S1335, S1349 Part No Longer Available
13. Motor Brush Assembly (2) - S1311, S1311-020, S1315, S1323, S1337, S1339, S1347, S1353, S1420 Part No Longer Available
13. Motor Brush Assembly (2) - S1319, S1329, S1335, S1349 167679
14. Bushing (2) Part No Longer Available
15. Motor Housing Assembly Part No Longer Available
16. Field Lamination Bolt (2) (Use With Metal Diffuser) 36112006
16. Field Lamination Bolt (Use With Molded Diffuser) - S1319, S1349 21447222
17. Lead Wire Assembly 46176001
18. Motor Gasket 38781017
19. Field Assembly - S1311, S1311-020, S1315, S1323, S1337, S1339, S1347, S1353, S1420 45311051
19. Field Assembly - S1319, S1329, S1335, S1349 45311048
20. Bearing Spacer - AY (Use With Metal Diffuser) 31148009
20. Bearing Spacer - AY (Use With Molded Diffuser) 31148011
21. Brush Carrier Assembly (Includes Items 9 Thru 13) - S1319, S1329, S1335, S1349 47318017
21. Brush Carrier Assembly (Includes Items 9 Thru 13) - S1311, S1311-020, S1315, S1323, S1337, 1339, S1347, S1353, S1420 47318008
Motor Assembly Complete (6.8 Amp) (Metal Diffuser) - S1311, S1323, S1311-020, S1315, S1337, S1339, S1347, S1353, S1420 43576083
Motor Assembly Complete (Metal Diffuser) - S1329, S1335 43578067
Motor Assembly Complete (7.5 Amp) (Molded Diffuser) (Use 43578067) - S1319, S1323, S1329, S1335, S1349 43576113
Hoover S1337 Portapower Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Extension Tube 43453027
2. Extension Tube - Poly - AG 3863801P
3. Crevice Tool 38617017
4. Furniture Brush - AG Part No Longer Available
5. Furniture Nozzle - AG 38614024
6. Dusting Brush - AG 43414064
7. Hose Grip - AAP 43466054
7. Hose Grip - AG 43466066
8. Hose Connector Collar (Molded Hoses) 36171025
8. Hose Connector Collar (Wire Hoses) 36116008
9. Hose Sleeve 32156010
10. Hose - Less Ends - AAZ Part No Longer Available
11. Hose Connector - AAP 38638036
11. Hose Connector - AG 38638059
12. Hose Grip - With SC - AAP 43466044
12. Hose Grip - With SC - AG Part No Longer Available
13. Gasket Part No Longer Available
14. Suction Control Ring 38711006
14. Suction Control Ring - ABN 38711012
15. Hose Assembly Complete - With SC 43434243
15. Hose Assembly Complete - ABX / AG 43434157
16. Hose - Wire - AAP (Includes Item 17) 43431149
16. Hose Only (Use 43434194) 43431156
17. Hose Connector - MV Part No Longer Available
17. Hose Connector - AG 38638060
18. Hose Assembly Complete - With SC Wire 43434243
18. Hose Assembly Complete - MV - S/C - 6' 43434194
19. Cord Set - MV (Includes Items 20, 21) 46348028
19. Cord Set - AG 46348031
20. Cord Strap - AG (5) 36172023
21. Cord / Wand Clip - AG (2) 36172584
Hoover S1337 Portapower Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Standard Rug & Floor Nozzle Assembly - AAP 43414121
1. Standard Rug & Floor Nozzle Assembly - AAP 43414139
1. Standard Rug & Floor Nozzle Assembly - ABE - S3393-020, S3521 43414140
1. Standard Rug & Floor Nozzle - ABX - S1221, S1315, S1337, S3393-040 0M114169
1. Standard Rug & Floor Nozzle - AG - S1339, S3547 Part No Longer Available
1. Standard Rug & Floor Nozzle - AG 43414172
2. Nozzle Tube - AG 38646039
3. Rug & Floor Nozzle - AAP 38615153
3. Rug & Floor Nozzle - ABE - S3393-020, S3521, S1339, S3547, S1221, S1315, S1337 38615182
4. Roller (2) (Nozzle 43414172 Requires 4) 38521018
5. Roller Axle- AY (2) (Nozzle 43414172 Requires 4) Part No Longer Available
6. Brush Housing - S1221, S1315, S1337 Part No Longer Available
7. Spring (2) 166649FW
8. Brush Back Assembly - AG 48443003
9. Screw- Self Tapping (2) 21447203
10. Brush Back Lever - MV Part No Longer Available
10. Brush Back Lever - ABN - S3393-020, S3521, S1221, S1339, S3547 38454006
11. Felt Washer 21329105
Hoover S1337 Portapower Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Deluxe Rug & Floor Nozzle Assembly - AAP 43414101
2. Nozzle Connector - AAP 38646045
3. Wheel & Bearing Assembly (2) 43244043
4. Wheel Bearing - AAT (2) 38511016
5. Rug & Floor Nozzle - AAP 38615180
6. Roller (2) 38521018
7. Roller Axle - AY (2) Part No Longer Available
8. Slider - AG 38451008
9. Brush Housing - MV 36414013
10. Spring (2) 166649FW
11. Brush Back Assembly - AG Part No Longer Available
12. Screw - Self Tapping (3) 21447203
13. Seal (2) Part No Longer Available
14. Pedal - MV 38434015
