Hoover S1335 Tempo Vacuum Cleaner Parts List & Schematic
Item Models To Fit Part Number
1. Bag Door Assembly - AAP S1335 42227171
2. Latch Button - AAP S1335 Part No Longer Available
3. Latch - BZ S1335 36151022
4. Bag Assembly Complete - Cloth (Reusable) S1335 43662024
5. Screw - Self Tapping (7) S1335 21447122
6. Bag Closure Clip - AG S1335 36425046
7. Wheel - AAP (2) S1335 Part No Longer Available
7. Housing Assembly - RH/LH - NAA S1335 42222174
9. Cord Slot Filler - MW S1335 37911090
10. Switch Assembly - AAP S1335 28161063
11. Terminal (2) S1335 27666527
12. Cord Reel Assembly S1335 41911010
13. Insulated Terminal S1335 12227
14. Brake Rod - BZ S1335 38458028
15. Lead Wire Tie (2) S1335 27479307
16. Cord Reel Housing - BZ S1335 Part No Longer Available
17. Black Slip Ring Assembly S1335 Part No Longer Available
18. Spacer - BZ (2) S1335 Part No Longer Available
19. White Slip Ring Assembly S1335 Part No Longer Available
20. Spool & Spring Assembly S1335 Part No Longer Available
21. Motor Assembly S1335 43578067
22. Torsion Spring - FW S1335 Part No Longer Available
23. Brake Lever Assembly - BZ S1335 Part No Longer Available
24. Cord Reel - BZ S1335 Part No Longer Available
25. Retainer - JM S1335 Part No Longer Available
26. Attachment Cord Assembly - AAP S1335 46363042
27. Contact Spring (2) S1335 Part No Longer Available
28. Brush Holder - BZ S1335 Part No Longer Available
29. Tool Rack - AAP S1335 36433072
30. Button - AAP S1335 38421065
31. Housing Assembly - RH/LH - NAA S1335 42222174
32. Motor Snubber (3) S1335 34141020
33. Bag Indicator Assembly - KM/BU S1335 51151024
34. Caster Housing - JM S1335 38411057
35. Wheel Carrier Assembly - AG S1335 41432040
36. Pressure Pad (2) S1335 163434
37. Bulkhead Assembly - MW S1335 43615053
Crevice Tool S1335 38617017
Furniture Nozzle - AG S1335 38614024
Dusting Brush - AG S1335 43414064
Rug & Floor Nozzle - AAP S1335 43414101
Extension Tube S1335 43453027
Hose Assembly Complete - With SC - AAZ / AAP S1335 43434243
Hoover S1335 Tempo Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Nut 12028
2. Washer - FW (2) Part No Longer Available
3. Motor Gasket 31178008
4. Fan Cover 37196065
5. Fan 43551008
6. Diffuser Assembly Complete - S1311, S1311-020, S1323, S1347 43551027
6. Diffuser Assembly Complete - Molded (43576113 Motor) - S1319, S1329, S1335, S1349 43551030
6. Diffuser Assembly Complete - Molded - S1315, S1337, S1339, S1353, S1420 43551029
7. Bearing Retainer Plate - AY 31165003
8. Armature Assembly Complete - S1311, S1311-020, S1315, S1323, S1337, S1339, S1347, S1353, S1420 44765138
8. Armature Assembly Complete - S1319, S1329, S1335, S1349 44765220
9. Spring (2) 38353004
10. Screw (2) 21429406
11. Brush Carrier (2) - S1311, S1311-020, S1315, S1323, S1337, S1339, S1347, S1353, S1420 167696AG
11. Brush Carrier (2) - S1319, S1329,S1335, S1349 Part No Longer Available
12. Brush Holder (2) - Use Brush Carrier Assembly 47318008 (Includes Items 9, 11, 12, 13) - S1311, S1311-020, S1315, S1323, S1337, S1339, S1347, S1353, S1420 Part No Longer Available
12. Brush Holder (2) - S1319, S1329, S1335, S1349 Part No Longer Available
13. Motor Brush Assembly (2) - S1311, S1311-020, S1315, S1323, S1337, S1339, S1347, S1353, S1420 Part No Longer Available
13. Motor Brush Assembly (2) - S1319, S1329, S1335, S1349 167679
14. Bushing (2) Part No Longer Available
15. Motor Housing Assembly Part No Longer Available
16. Field Lamination Bolt (2) (Use With Metal Diffuser) 36112006
16. Field Lamination Bolt (Use With Molded Diffuser) - S1319, S1349 21447222
17. Lead Wire Assembly 46176001
18. Motor Gasket 38781017
19. Field Assembly - S1311, S1311-020, S1315, S1323, S1337, S1339, S1347, S1353, S1420 45311051
19. Field Assembly - S1319, S1329, S1335, S1349 45311048
20. Bearing Spacer - AY (Use With Metal Diffuser) 31148009
20. Bearing Spacer - AY (Use With Molded Diffuser) 31148011
21. Brush Carrier Assembly (Includes Items 9 Thru 13) - S1319, S1329, S1335, S1349 47318017
21. Brush Carrier Assembly (Includes Items 9 Thru 13) - S1311, S1311-020, S1315, S1323, S1337, 1339, S1347, S1353, S1420 47318008
Motor Assembly Complete (6.8 Amp) (Metal Diffuser) - S1311, S1323, S1311-020, S1315, S1337, S1339, S1347, S1353, S1420 43576083
Motor Assembly Complete (Metal Diffuser) - S1329, S1335 43578067
Motor Assembly Complete (7.5 Amp) (Molded Diffuser) (Use 43578067) - S1319, S1323, S1329, S1335, S1349 43576113
Hoover S1335 Tempo Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Extension Tube 43453027
2. Extension Tube - Poly - AG 3863801P
3. Crevice Tool 38617017
4. Furniture Brush - AG Part No Longer Available
5. Furniture Nozzle - AG 38614024
6. Dusting Brush - AG 43414064
7. Hose Grip - AAP 43466054
7. Hose Grip - AG 43466066
8. Hose Connector Collar (Molded Hoses) 36171025
8. Hose Connector Collar (Wire Hoses) 36116008
9. Hose Sleeve 32156010
10. Hose - Less Ends - AAZ Part No Longer Available
11. Hose Connector - AAP 38638036
11. Hose Connector - AG 38638059
12. Hose Grip - With SC - AAP 43466044
12. Hose Grip - With SC - AG Part No Longer Available
13. Gasket Part No Longer Available
14. Suction Control Ring 38711006
14. Suction Control Ring - ABN 38711012
15. Hose Assembly Complete - With SC 43434243
15. Hose Assembly Complete - ABX / AG 43434157
16. Hose - Wire - AAP (Includes Item 17) 43431149
16. Hose Only (Use 43434194) 43431156
17. Hose Connector - MV Part No Longer Available
17. Hose Connector - AG 38638060
18. Hose Assembly Complete - With SC Wire 43434243
18. Hose Assembly Complete - MV - S/C - 6' 43434194
19. Cord Set - MV (Includes Items 20, 21) 46348028
19. Cord Set - AG 46348031
20. Cord Strap - AG (5) 36172023
21. Cord / Wand Clip - AG (2) 36172584
Hoover S1335 Tempo Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Standard Rug & Floor Nozzle Assembly - AAP 43414121
1. Standard Rug & Floor Nozzle Assembly - AAP 43414139
1. Standard Rug & Floor Nozzle Assembly - ABE - S3393-020, S3521 43414140
1. Standard Rug & Floor Nozzle - ABX - S1221, S1315, S1337, S3393-040 0M114169
1. Standard Rug & Floor Nozzle - AG - S1339, S3547 Part No Longer Available
1. Standard Rug & Floor Nozzle - AG 43414172
2. Nozzle Tube - AG 38646039
3. Rug & Floor Nozzle - AAP 38615153
3. Rug & Floor Nozzle - ABE - S3393-020, S3521, S1339, S3547, S1221, S1315, S1337 38615182
4. Roller (2) (Nozzle 43414172 Requires 4) 38521018
5. Roller Axle- AY (2) (Nozzle 43414172 Requires 4) Part No Longer Available
6. Brush Housing - S1221, S1315, S1337 Part No Longer Available
7. Spring (2) 166649FW
8. Brush Back Assembly - AG 48443003
9. Screw- Self Tapping (2) 21447203
10. Brush Back Lever - MV Part No Longer Available
10. Brush Back Lever - ABN - S3393-020, S3521, S1221, S1339, S3547 38454006
11. Felt Washer 21329105

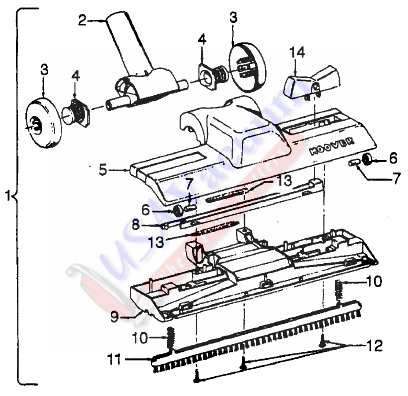

Hoover S1335 Tempo Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Deluxe Rug & Floor Nozzle Assembly - AAP 43414101
2. Nozzle Connector - AAP 38646045
3. Wheel & Bearing Assembly (2) 43244043
4. Wheel Bearing - AAT (2) 38511016
5. Rug & Floor Nozzle - AAP 38615180
6. Roller (2) 38521018
7. Roller Axle - AY (2) Part No Longer Available
8. Slider - AG 38451008
9. Brush Housing - MV 36414013
10. Spring (2) 166649FW
11. Brush Back Assembly - AG Part No Longer Available
12. Screw - Self Tapping (3) 21447203
13. Seal (2) Part No Longer Available
14. Pedal - MV 38434015
