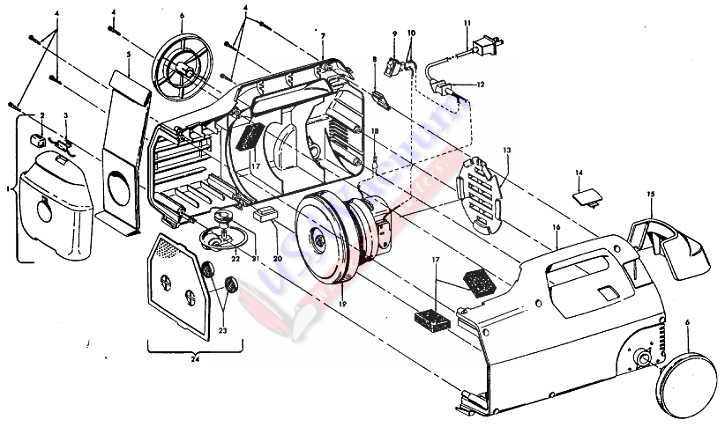

Hoover S1311 Tempo / Portapower II Parts List & Schematic
ItemPart Number
1. Bag Door Assembly 42227173
2. Latch Button Part No Longer Available
2. Latch Button - S1315 38426086
3. Latch 36151022
4. Screw - Self Tapping (7) 21447122
5. Disposable Bag 4010063R
6. Wheel (2) Part No Longer Available
7. Housing Assembly - Rh/Lh 42222170
7. Housing Assembly - Rh/Lh - S1315 42212130
8. Cord Slot Filler 37911090
9. Switch Assembly 28161063
10. Terminal (2) 27666527
11. Attachment Cord Assembly 46383264
11. Attachment Cord Assembly - S1315 46383291
12. Cord Protector Part No Longer Available
13. Baffle 38763008
14. Cord Reel Plug 38422151
14. Cord Reel Plug 38422154
15. Cord Wrap - S1311 36433080
Tool Rack - S1311-020 36433072
Tool Rack - S1315 36433089
16. Housing Assembly - Rh/Lh 42222170
16. Housing Assembly - Rh/Lh - S1315 42212130
17. Motor Snubber (3) 34141020
18. Insulated Terminal 12227
19. Motor Assembly 43576083
20. Hole Plug 37911034
20. Hole Plug - S1315 37911065
21. Caster Housing 38411057
22. Wheel Carrier Assembly 41432040
23. Pressure Pad (2) 163434
24. Bulkhead Assembly 43615053
Crevice Tool - S1311, S1311-020 38617017
Furniture Nozzle - S1311, S1311-020 38614024
Furniture Brush - S1311, S1311-020 Part No Longer Available
Dusting Brush Assembly - S1311, S1311-020 43414064
Rug & Floor Nozzle - S1311, S1311-020 OM114169
Extension Tube - Poly - S1311, S1311-020 3863801P
Hose Assembly Complete - S1311, S1311-020 43434157
Crevice Tool - S1315 38617017
Furniture Nozzle - S1315 38614024
Dusting Brush Assembly - S1315 43414064
Extension Tube - Poly - S1315 3863801P
Rug And Floor Nozzle - S1315 OM114169
Hose Assembly Complete - S1315 43434157

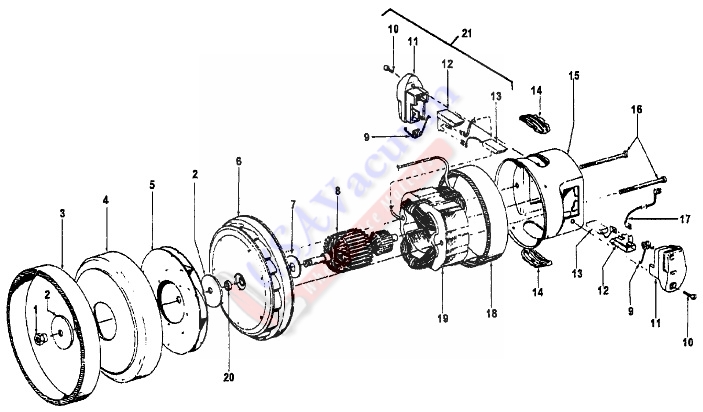

Hoover S1311 Tempo / Portapower II Parts List & Schematic
ItemPart Number
1. Nut 12028
2. Washer (2) Part No Longer Available
3. Motor Gasket 31178008
4. Fan Cover 37196065
5. Fan 43551008
6. Diffuser Assembly Complete - S1311, S1311-020, S1323, S1347 43551027
6. Diffuser Assembly Complete (Molded) - S1319, S1329, S1335, S1349 (43576113 Motor) 43551030
6. Diffuser Assembly Complete (Molded) - S1315, S1337, S1339, S1353, S1420 43551029
7. Bearing Retainer Plate 31165003
8. Armature Assembly - S1311, S1311-020, S1315, S1323, S1337, S1339, S1347, S1353, S1420 44765138
8. Armature Assembly - S1319, S1329, S1335, S1349 44765220
9. Spring (2) 38353004
10. Screw (2) 21429406
11. Brush Carrier (2) - S1311, S1311-020, S1315, S1323, S1337, S1339, S1347, S1353, S1420 167696AG
11. Brush Carrier (2) - S1319, S1329, S1335, S1349 Part No Longer Available
12. Brush Holder (2) - S1311, S1311-020, S1315, S1323, S1337, S1339, S1347, S1353, S1420 (Use Brush Carrier Assembly 47318008 - Includes Items 9, 11, 12, 13) Part No Longer Available
12. Brush Holder (2) - S1319, S1329, S1335, S1349 Part No Longer Available
13. Motor Brush Assembly - S1311, S1311-020, S1315, S1323, S1337, S1339, S1347, S1353, S1420 Part No Longer Available
13. Motor Brush Assembly - S1319, S1329, S1335, S1349 167679
14. Bushing (2) Part No Longer Available
15. Motor Housing Assembly Part No Longer Available
16. Field Lamination Bolt (2) (Use With Metal Diffuser) 36112006
16. Field Lamination Bolt - S1319, S1349 21447222
17. Lead Wire 46176001
18. Motor Gasket 38781017
19. Field Assembly - S1311, S1311-020, S1315, S1323, S1337, S1339, S1347, S1353, S1420 45311051
19. Field Assembly - S1319, S1329, S1335, S1349 45311048
20. Bearing Spacer (Use With Metal Diffuser) 31148009
20. Bearing Spacer (Use With Molded Diffuser) 31148011
21. Brush Carrier Assembly (Includes Items 9 Thru 13) - S1319, S1329, S1335, S1349 47318017
21. Brush Carrier Assembly (Includes 9 Thru 13) - S1311, S1311-020, S1315, S1323, S1337, 1339, S1347, S1353, S1420 47318008
Motor Assembly Complete - S1311, S1323, S1311-020, S1315, S1337, S1339, S1347, S1353, S1420 (6.8 Amp) (Metal Diffuser) 43576083
Motor Assembly Complete - S1329, S1335 (Metal Diffuser) 43578067
Motor Assembly Complete - S1319, S1323, S1329, S1335, S1349 (7.5 Amp) (Molded Diffuser) (Use Part 43578067) 43576113

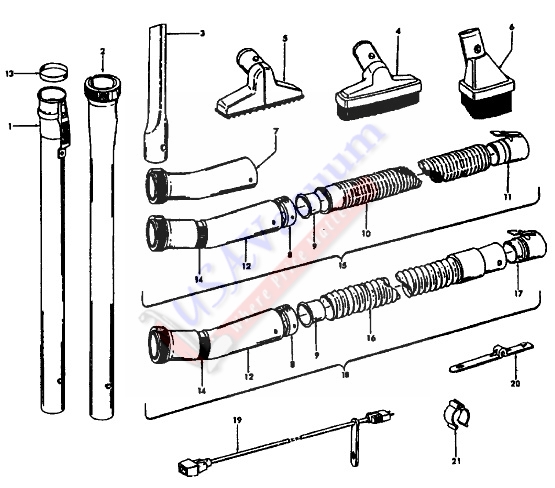

Hoover S1311 Tempo / Portapower II Parts List & Schematic
ItemPart Number
1. Extension Tube 43453027
2. Extension Tube - Poly 3863801P
3. Crevice Tool 38617017
4. Furniture Brush Part No Longer Available
5. Furniture Nozzle 38614024
6. Dusting Brush 43414064
7. Hose Grip 43466054
7. Hose Grip 43466066
8. Hose Connector Collar (Molded Hoses) 36171025
8. Hose Connector Collar (Wire Hoses) 36116008
9. Hose Sleeve 32156010
10. Hose - Less Ends Part No Longer Available
11. Hose Connector 38638036
11. Hose Connector 38638059
12. Hose Grip 43466044
12. Hose Grip Part No Longer Available
13. Gasket Part No Longer Available
14. Suction Control Ring 38711006
14. Suction Control Ring 38711012
15. Hose Assembly Complete 43434243
15. Hose Assembly Complete 43434157
16. Hose (Wire) (Includes Item 17) 43431149
17. Hose Only (Use 43434194) 43431156
Hose Connector Part No Longer Available
Hose Connector 38638060
18. Hose Assembly Complete 43434243
18. Hose Assembly Complete 43434194
19. Cord Set (Includes Items 20, 21) 46348028
19. Cord Set 46348031
20. Cord Strap (5) 36172023
21. Cord / Wand Clip (2) 36172584
Hoover S1311 Tempo / Portapower II Parts List & Schematic
ItemPart Number
1. Standard Rug & Floor Nozzle Assembly 43414121
1. Standard Rug & Floor Nozzle Assembly 43414139
1. Standard Rug & Floor Nozzle Assembly - S3393-020, S3521 43414140
1. Standard Rug & Floor Nozzle Assembly - S1221, S1315, S1337, S3393-040 OM114169
1. Standard Rug & Floor Nozzle Assembly - S1339, S3547 Part No Longer Available
2. Standard Rug & Floor Nozzle Assembly 43414172
3. Nozzle Tube - Ag 38646039
3. Rug & Floor Nozzle 38615153
4. Rug & Floor Nozzle - S3393-020, S3521, S1339, S3547, S1221, S1315, S1337 38615182
5. Roller (2) (Nozzle 43414172 Requires 4) 38521018
6. Roller Axle (2) (Nozzle 43414172 Requires 4) Part No Longer Available
7. Brush Housing - S1221, S1315, S1337 Part No Longer Available
8. Spring (2) 166649FW
Brush Back Assembly 48443003
9. Screw - Selftapping (2) 21447203
10. Brush Back Lever Part No Longer Available
11. Brush Back Lever - S3393-020, S3521, S1221, S1339, S3547 38454006
Felt Washer 21329105

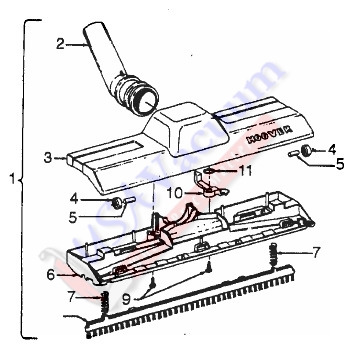

Hoover S1311 Tempo / Portapower II Parts List & Schematic
ItemPart Number
1. Deluxe Rug & Floor Nozzle Assembly 43414101
2. Nozzle Connector 38646045
3. Wheel & Bearing Assembly (2) 43244043
4. Wheel Bearing (2) 38511016
5. Rug & Floor Nozzle 38615180
6. Roller (2) 38521018
7. Roller Axle (2) Part No Longer Available
8. Slider 38451008
9. Brush Housing 36414013
10. Spring (2) 166649FW
11. Brush Back Assembly - Ag Part No Longer Available
12. Screw - Self Tapping (3) 21447203
13. Seal (2) Part No Longer Available
14. Pedal 38434015
