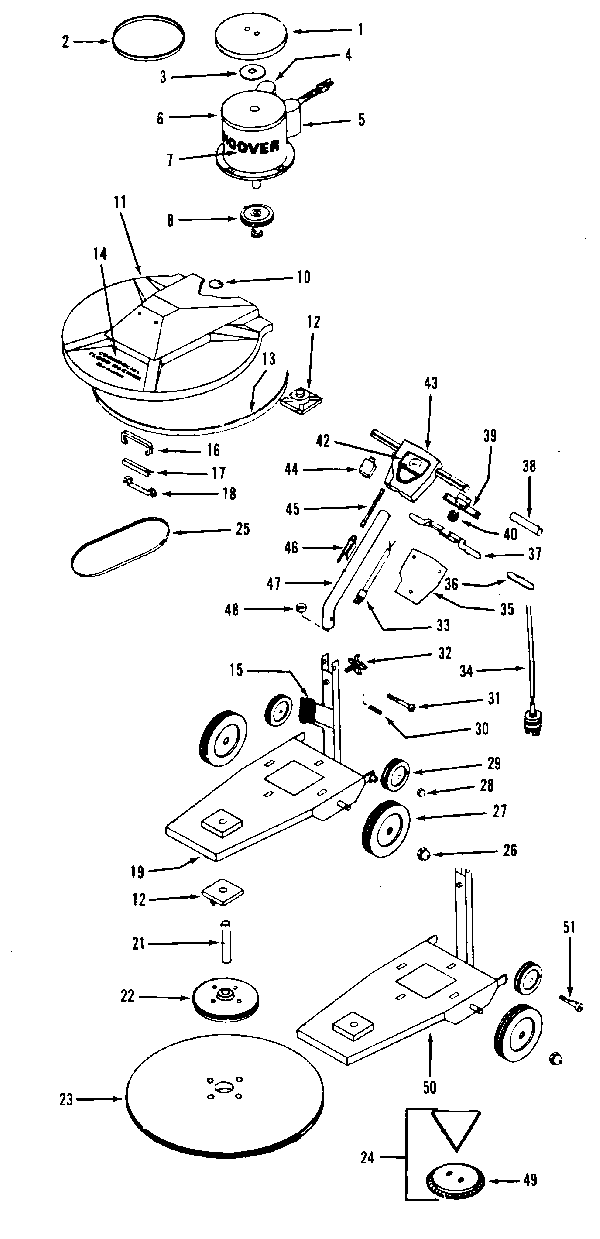

Hoover F7095 Commercial Floor Burnisher Parts List & Schematic
ItemPart Number
1. Motor Canopy 59137018
2. Canopy Bumper 59137015
3. Canopy Spacer 59137020
4. Capacitor, Oil 59137021
5. Capacitor, Electrolytic 59137022
6. Motor, 1-1.2, Hp Ac 11 5V 59137016
7. Motor Case Decal 59137017
8. Motor Pulley & Bushing 59137023
10. Cam Tensioner 59137025
11. Pad Drive Shroud 59137322
12. Flange Bearing 59137323
13. Shroud Bumper 59137014
14. Shroud Decal 59137013
15. Plug Button 59137027
16. Lift Handle 59137028
17. Handle Cap 59137029
18. Handle Bracket 59137030
19. Chassis - C5029 59137010
21. Shaft 59137032
22. Drive Pulley 59137033
23. Pad Holder 59137034
24. Pad Lock Assembly 59137345
25. Drive Belt 59137036
26. Acorn Nut 59137037
27. Wheel (6") 59137011
28. Acorn Nut - C5029 59137133
29. Transport Wheel (4") 59137039
30. Split Pin 59137040
31. Shoulder Bolt 59137041
32. Handle Lock Knob 59137042
33. Handle Cord - 2W - 33 59137043
33. Handle Cord - 3W - 33 59137339
34. Power Cord - 50' 59137141
35. Switch Box Cover 59137006
36. Switch Lever Sleeve 59137008
37. Switch Lever 59137121
38. Handle Grip 59137007
39. Switch 59137019
39a. Insulation Paper 59137046
39b. Bracket 59137047
40. Switch Lever Spring 59137048
42. Switch Box Decal 59137009
43. Switch Box 59137005
44. Circuit Breaker 59137050
45. Jumper Lead Assembly 59137051
46. Cord Hook 59137052
47. Handle Tube 59137053
48. Cap Plug 59137054
49. Pad Clamp 59137328
50. Chassis - F7095 59137010
51. Bolt - F7095 59137038
