> C3005 - Hoover Commercial Upright Carpet Soil Extractor
We found 0 results matching your criteria.
Hoover C3005 Commercial Upright Carpet Soil Extractor Parts List & Schematic, Hoover Model C3005 Parts List & Schematic
ItemPart Number
01. Quick Connect 1308061
02. Hose Tie 1539057
03. Vac Hose C3005 1538181
03. Vac Hose C3003 43433048
04. Solution Hose C3003 43443003
04. Solution Hose C3005 43446007
05. Quick Connect 1308062
06. Cuff 33283002

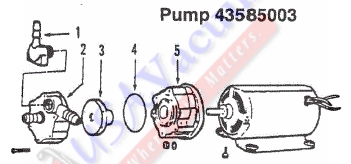

Hoover C3005 Commercial Upright Carpet Soil Extractor Parts List & Schematic, Hoover Model C3005 Parts List & Schematic
ItemPart Number
01. Elbow- 1528005
02. Pump Body 1535006
03. Pump Repair Kit ( Includes Items 3, 4, 5 ) 40300009
04. O-Ring 1055001
05. Pump Repair Kit ( Includes Items 3, 4, 5 ) 40300009
Hoover C3005 Commercial Upright Carpet Soil Extractor Parts List & Schematic, Hoover Model C3005 Parts List & Schematic
ItemPart Number
01. Solution Tank Lid 42272076
02. Screw 1305527
03. Hinge 41133001
04. Filter Screen 43611014
05. Elbow 1328433
06. Nut- 1307631
07. Vacuum Hose 43431020
08. Hose Clamp 1114083
09. Motor Housing 42192035
10. Strut 41943002
11. Handle 33123010
12. Stachion 1204122
13. Handle Tube 31753002
14. Screw 1105522
15. Nut 1107612
16. Brass Nut 1307617
17. Intake Screen 43611018
18. Vacuum Tank Lid 42272075
19. Vacuum Tank Gasket 38785007
20. Washer 1107610
21. Intake Tube C3003 43461012
21. Intake Tube C3005 43461017
22. Deflector Plate 34557001
23. Retainer Nut 1207616
24. Male Adapter 1509049
25. Vac Tank C3005 42272010
25. Vac Tank C3003 42272053
26. Drain Plug 1557125
28. Screw 21781154
29. Lock Washer 164929
30. Lock Nut 1107602
31. Vac Motor 43576027
32. Motor Mounting Plate 41312008
33. Spacer 1216693
34. Top Separator 36321016
35. Quick Connect 1308006
36. Washer 21312794
37. Solution Hose 43443005
38. Bushing 1512102
39. Bottom Separator 41312019
40. Pump 43585003
41. Lock Nut 1107602
42. Hose Clamp 25411049
43. Solution Hose 1038000
44. Hose Clamp 1114477
45. Barbed Fitting 1309141
46. Bypass Hose C3005 1511026
46. Bypass Hose C3003 38631009
48. Solution Tank C3005 42272020
48. Solution Tank C3003 42272055
49. Bolt 1105501
50. Cord Wrap 43152001
51. Washer 1107605
52. Nut 21854103
53. Strain Relief 3/4 27482134
53. Strain Relief 5/8 27482302
55. Power Cord 46583157
56. Screw 1105567
57. Rocker Switch - 3 Position (White Buttons) 1524106
58. Swivel Wheel 23737106
59. Washer 1107627
60. Nut 1107628
61. Screw 1105503
62. Washer 21312710
63. Switch Guard 37923021
64. Receptacle 27764001
65. Carrying Case C3003 42275002
65. Carrying Case C3005 42275006
66. Hinge 41132003
67. Screw 1305527
