Hoover C3003 Commercial Upright Carpet Soil Extractor Parts List & Schematic, Hoover Model C3003 Parts List & Schematic
1. Quick Connect - Female - Small 1308061
2. Hose Tie 1539057
3. Vacuum Hose - 10 - C3003 43433048
3. Vacuum Hose - 20 - C3005 1538181
4. Solution Hose - 10 - C3003 43443003
4. Solution Hose - 20 - C3005 43446007
5. Quick Connect - Female - Large 1308062
6. Cuff 33283002
Hoover C3003 Commercial Upright Carpet Soil Extractor Parts List & Schematic, Hoover Model C3003 Parts List & Schematic
1. Elbow 1528005
2. Body 1535006
3. Pump Repair Kit ( Includes Items 3, 4, 5 ) 40300009
4. O Ring 1055001
5. Pump Repair Kit ( Includes Items 3, 4, 5 ) 40300009
Hoover C3003 Commercial Upright Carpet Soil Extractor Parts List & Schematic, Hoover Model C3003 Parts List & Schematic
1. Solution Tank Lid 42272076
2. Screw 1305527
3. Hinge 41133001
4. Filter Screen 43611014
5. Elbow 1328433
6. Nut 1307631
7. Vacuum Hose 43431020
8. Hose Clamp 1114083
9. Motor Housing 42192035
10. Strut - C3003 41943002
11. Handle - C3003 33123010
12. Stanchion - C3005 1204122
13. Handle Tube - C3005 31753002
14. Screw 1105522
15. Nut 1107612
16. Nut - Brass 1307617
17. Screen 43611018
18. Vac Tank Lid 42272075
19. Gasket 38785007
20. Washer 1107610
21. Intake Tube - C3005 43461017
21. Intake Tube - C3003 43461012
22. Deflector Plate 34557001
23. Nut - Zinc 1207616
24. Adapter 1509049
25. Vac Tank - C3003 42272053
25. Vac Tank - C3005 42272010
26. Drain Plug 1557125
28. Screw 21781154
29. Washer 164929
30. Nut 1107602
31. Vac Motor 43576027
32. Mounting Plate 41312008
33. Spacer 1216693
34. Top Separator 36321016
35. Quick Connect- Male 1308006
36. Washer 21312794
37. Solution Hose 43443005
38. Bushing 1512102
39. Bottom Separator 41312019
40. Pump 43585003
41. Nut 1107602
42. Hose Clamp 25411049
43. Solution Hose 1038000
44. Hose Clamp 1114477
45. Barbed Fitting 1309141
46. Bypass Hose - C3005 1511026
46. Bypass Hose - C3003 38631009
48. Solution Tank - C3003 42272055
48. Solution Tank - C3005 42272020
49. Bolt 1105501
50. Cord Wrap 43152001
51. Washer 1107605
52. Nut 21854103
53. Strain Relief - 5/8 27482302
53. Strain Relief - 3/4 27482134
55. Power Cord 46583157
56. Screw 1105567
57. Rocker Switch - 3 Position (White Bufton) 1524106
58. Swivel Wheel 23737106
59. Washer 1107627
60. Nut 1107628
61. Screw 1105503
62. Washer 21312710
63. Switch Guard 37923021
64. Receptacle 27764001
65. Carrying Case - C3003 42275002
65. Carrying Case - C3005 42275006
66. Hinge 41132003
67. Screw 1305527

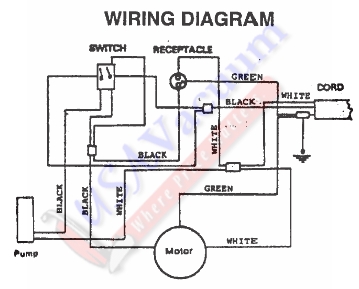

Hoover C3003 Commercial Upright Carpet Soil Extractor Parts List & Schematic, Hoover Model C3003 Parts List & Schematic
