You are here: Home > HOOVER > HOOVER PARTS BY SERIES > HOOVER COMMERCIAL PARTS
(C SERIES)
 > C2075 - Hoover Shoulder Vac Commercial Bagged Canister
We found 0 results matching your criteria.

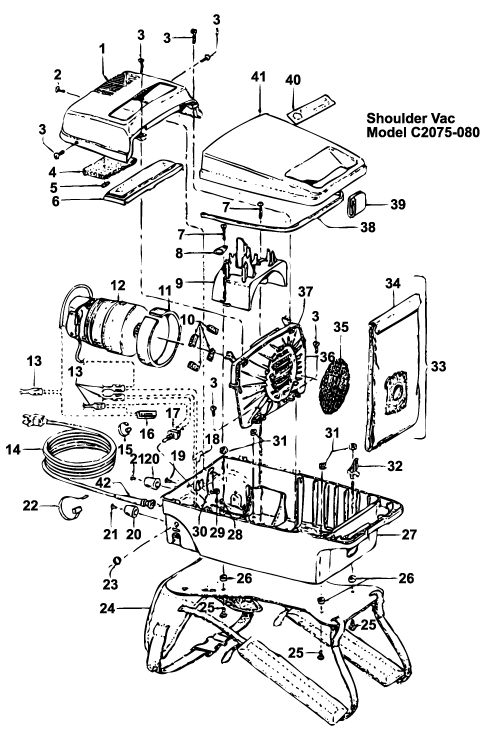

Hoover C2075 Shoulder Vac Parts List & Schematic, Hoover Model C2075 Parts List & Schematic

ItemPart Number
Crevice Tool (Not Shown)38617017
Furniture Nozzle (Not Shown)38-1702-05
Dust Brush (Not Shown)43414064
Floor Brush (Not Shown)43414073
Extension Tube (Not Shown)43453027
Rug and Floor Nozzle (Not Shown)4341401P
Hose Assembly (Not Shown)43434013
1. Motor CoverPart No Longer Available
2. Screw21429406
3. Screw21447041
3. Screw21447041
3. Screw21447041
3. Screw21447041
3. Screw21447041
3. Screw21447041
4. Exhaust Diffuser34163003
5. Speed NutPart No Longer Available
6. Control PanelPart No Longer Available
7. Screw21447072
7. Screw21447072
8. Wire Holder45517
9. Motor Retainer36321012
10. Pad (4 required)Part No Longer Available
11. Fan Housing Seal3414300
12. Motor AssemblyPart No Longer Available
13. Insulated Terminal12227
13. Insulated Terminal12227
14. Attachment Cord46383193
15. Wire Tie27479307
16. Thermal Protector47534018
17. Switch28128002
18. ShieldPart No Longer Available
19. RivetPart No Longer Available
20. Foot38411055
20. Foot38411055
21. RivetPart No Longer Available
21. RivetPart No Longer Available
22. Wire Tie27479307
23. Switch Nut12560
24. Harness Assembly48615014
25. Screw21772598
25. Screw21772598
25. Screw21772598
26. Spacer (4 required)21328079
26. Spacer (4 required)21328079
27. Main Body42214006
28. Washer21312710
29. Washer (3 required)21312704
30. RetainerPart No Longer Available
31. Lock Nut (4 required)21854103
31. Lock Nut (4 required)21854103
32. Latch36151015
33. Cloth BagPart No Longer Available
34. Bag Closure Clip36425077
35. Secondary Filter31114010
36. Bulkhead36426014
37. Filter Support SealPart No Longer Available
38. Lid Seal38781010
39. Velcro StrapPart No Longer Available
40. Nameplate52125145
41. Bag Housing Lid AssemblyPart No Longer Available
42. Cord ProtectorPart No Longer Available
