Hoover C1119 Twin Conquest Upright Vacuum Cleaner Parts List & Schematic
Item Part Number
Agitator (18 In) 48416036
1. Thread Guard (18 In) 41435066
2. Bearing (18 In) 24152807
3. Wave Spring Washer (18 In) 21345113
4. Agitator End (18 In) 36422004
5. Agitator Body With Ends (18 In) 48416017
6. Thread Guard (18 In) 41435061
7. Agitator Shaft (18 In) 32873004
Agitator (14 In) 48416035
1. Thread Guard (14 In) 41435066
2. Bearing (14 In) 24152807
3. Wave Spring Washer (14 In) 21345113
4. Agitator End (14 In) 36422004
5. Agitator Body With Ends (14 In) Part No Longer Available
6. Thread Guard (14 In) 41435061
7. Agitator Shaft (14 In) 32873007

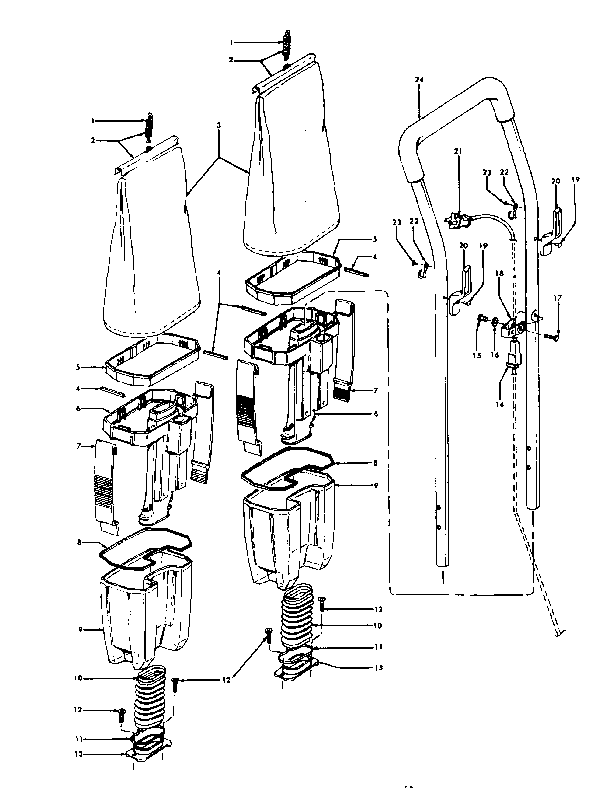

Hoover C1119 Twin Conquest Upright Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Jacket Support Spring (2) 38336019
2. Bag Spring / Clip Assembly 41128016
3. Cloth Bag - C1119, C1119-080 43667040
3. Cloth Bag - C1820 43667056
4. Seal 34112015
5. Bag Expander (2) 35173001
6. Dust Cup Support & Bellows 41427012
7. Latch - Ag (4) 36155011
8. Gasket (2) 34123020
9. Dust Cup (2) 38775001
10. Bellows Ag (2) 38673001
11. Bag Flange Clamp (2) 49044
12. Screw (4) 36112002
13. Bag Flange (2) 41424018
14. Cord Protector Hp 36215025
15. Handle Nut 32277008
16. Washer - Lock Special 13704
17. Handle Bolt 21631302
18. Cord Retaining Clamp 34785017
19. Pop Rivet (2) Part No Longer Available
20. Cord Clip - Ag 39441016
21. Cord - Hp - C1119 Part No Longer Available
21. Cord - Aaw - C1119-080, C1820 Part No Longer Available
22. Bag Support Hook (2) Part No Longer Available
23. Pop Rivet (2) Part No Longer Available
24. Handle Complete 48646080
Lock Ring (Used To Hold Item 12 In Place) 013759--

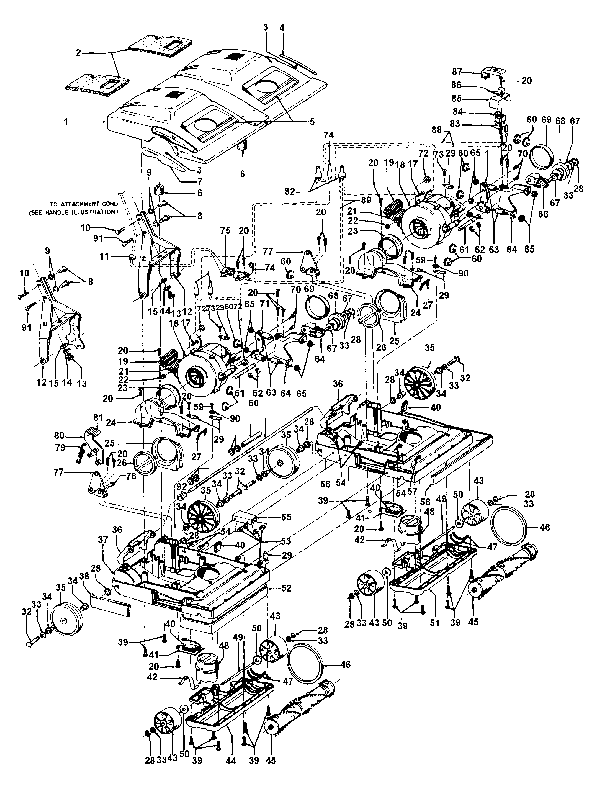

Hoover C1119 Twin Conquest Upright Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Twin Hood Assembly - La 42251329
2. Gasket (2) 38783005
3. Speed Nut (2) 21364102
4. Wear Strip - LH 36222012
5. Nameplate (2) 52115108
6. Motor Cushion (2) 31164004
7. Wear Strip - RH 36222017
8. Handle Nut - Aw / Ay (4) 32277021
9. Washer - Lock - Special (4) 13704
10. Bolt - Aw (2) 21631302
11. Cord Retainer - Hp 36172015
12. Bail - Aa 41416081
13. Bolt (2) Part No Longer Available
14. Lockwasher (2) Part No Longer Available
15. Washer (2) 21312799
16. Bail Aa Part No Longer Available
17. Machine Screw (2) 21765140
18. Motor Assembly (2) Part No Longer Available
19. Bellows (2) 38671008
20. Screw (2) 21447003
21. Clamp Band - Ay (2) 34797008
22. Hex Nut (2) 15854EF
23. Duct Boot (2) 38671005
24. Air Duct - Bz (2) 38657020
25. Cap Lock - Ly (2) 41119008
26. Cap - Ag (2) 37257074
27. Duct Gasket (2) 34253013
28. Retaining Ring (14) 160017
29. Lead Wire Holder (7) 45517
30. Spacer Part No Longer Available
31. Bail Shaft 32543014
32. Rear Axle (4) 32512001
33. Washer 163110
34. Bearing (8) 162143
35. Rear Wheel (4) 38522036
36. Exhaust Flange (2) 42256106
37. Main Body - RH Part No Longer Available
38. Furniture Guard - Ag - Short Part No Longer Available
39. Screw - Self Tapping (16) 21447012
40. Motor Cushion (4) 34141005
41. Access Door (2) 35121001
42. Spring (2) 38381005
43. Front Wheel (4) 38522034
44. Bottom Plate - RH 37245096
45. Agitator Assembly (2) 48416035
46. V Belt (2) 38528013
47. Gasket (2) 38781008
48. Height Adjustment Cap (2) 36436005
49. Front Axle (2) 32543005
50. Washer - Ef (4) 21312754
51. Bottom Plate - LH Part No Longer Available
52. Furniture Guard - Ly 41211030
53. Hex Lock Nut - Special (6) 1107602
54. Hex Head Machine Screw (5) 21781154
55. Bracket - Ay Part No Longer Available
56. Main Body - LH 37241119
57. Pan Head Machine Screw Part No Longer Available
58. Furniture Guard - Ly 41211029
59. Screw (2) Part No Longer Available
60. Lead Wire Tie (10) 27479307
61. Shaft (2) 31534001
62. Lock Ring (4) Part No Longer Available
63. Sandwich Mount (4) 32724010
64. Motor Support Bracket 36321006
65. Nut (8) 21852158
66. Pulley Shaft & Support Arm (2) 43256007
67. Bearing (4) 31158008
68. Pulley (2) 43256002
69. Belt (2) 38528036
70. Screw (4) 17001FW
71. Mounting Bracket 36321002
72. Hex Nut - Ef (4) 21652005
73. Screw (2) 17001FW
74. Insulated Terminal (3) 12227
75. Cord Protector 36216008
76. Cable Wedge 27478611
77. Foot Lever Support 35214009
78. Shaft 32215002
79. Spring 38335008
80. Handle Control Lever Assembly 43151006
81. Foot Pad 38426030
82. Insulated Terminal (2) 18972
83. Insulating Pod (2) Part No Longer Available
84. Push Switch 28212009
85. Switch Protector Part No Longer Available
86. Clamp Push Switch 36171030
87. Switch Pedal - Hp 38426047
88. Lead Wire - Black Part No Longer Available
89. Cord - Stripped Part No Longer Available
90. Nut - Special 15854EF
91. Bolt (2) 21831024
92. Bushing Part No Longer Available
Cleaner Carton Part No Longer Available
Bottom Support Part No Longer Available
Top Support Part No Longer Available
Dust Cup Support Part No Longer Available
Tube Part No Longer Available
Operating Instructions Part No Longer Available
Assembly Instructions Part No Longer Available
Hoover C1119 Twin Conquest Upright Vacuum Cleaner Parts List & Schematic
Item Part Number
1. Lock Washer Part No Longer Available
2. Nut 33426001
3. Screw 21447072
4. Fan Chamber Cove 38736025
5. Fan 38755012
6. Nut 21641557
7. Fan Chamber 43588018
8. Sandwich Mount Part No Longer Available
9. Spring 12854
10. Bearing 24152807
11. Star Ring 24198001
12. Retainer 12025
13. Field Coil 45311056
14. Armature 44765184
15. Washer 21345115
16. Air Intake Duct 37257086
17. Screw 21447041
18. Carbon Brush 47315010
19. Brush Carrier Assembly 47318008
20. Screw 21479302
21. Spring 38353004
22. Lock Washer 21338006
23. Motor Housing 37191090
24. Screw 21563061
25. Rivet 12503EF
26. Washer Part No Longer Available
27. Lead Wire Holder 45517
