Hoover C1065 Industrial Cleaner Parts List & Schematic
ItemPart Number
1. Thread Guard & Spring (Metal) Part No Longer Available
1. Thread Guard - Lh (Molded) Part No Longer Available
2. Bearing 43267002
3. Thrust Washer 21347003
4. Agitator End (Early Model Standard Performance Cleaners, Lh Helix) Part No Longer Available
4. Agitator End (Standard & High Performance Cleaners, Rh Helix) 160542
4. Agitator End (Use With Two Brush Agitator 48414021) 41435070
5. Agitator Brush - 8 Mil (Early Model Standard Performance Cleaners, Lh Helix) Part No Longer Available
5. Agitator Brush - 8 Mil (Standard Performance Cleaners, Rh Helix) 160646BZ
5. Agitator Brush - 11 Mil (High Performance Cleaners, Rh Helix) 48445001
6. Agitator Shaft (Used With Metal Thread Guards) Part No Longer Available
6. Agitator Shaft (Used With Molded Thread Guards) 32724008
7. Thread Guard Rh (Metal) 12985AY
7. Thread Guard Rh (Molded) 36423007
Agitator Belt - Domestic Models - Convertible/Decade 80/Heavy Duty Commercials 49258AG
Agitator Belt - Lightweight Commercials 44783AG
Agitator Assembly - Standard Performance, Rh Helix (Metal Thread Guards) 169371MF
Agitator Assembly - High Performance Cleaners, Rh Helix (Metal Thread Guards With Spdng) 41435005
Agitator Assembly - High Performance Cleaners, Rh Helix (Metal Thread Guards) Part No Longer Available
Agitator Assembly - Standard Performance, Rh Helix (Molded Thread Guards) Part No Longer Available
Four Brush Agitator Assembly - Heavy Duty Commercial (Use 47159 Brush-Long, 47160 Brush-Short & 46875 Sems Fastener) Part No Longer Available
Four Brush Agitator Assembly - Lightweight Commercial (Use 160646Bz Brush & 36422003 Agitator End) 48414003
Two Brush Agitator Without Beater Bar (Molded Thread Guards) 48414021
Hoover C1065 Industrial Cleaner Parts List & Schematic
ItemPart Number
1. Furniture Brush - Ag Part No Longer Available
4. Dusting Brush 43414064
6. Swivel Connector 38644040
7. Split Ring 33712007
8. Brush Back 48447001
9. Floor - Brush 43414073
10. Furniture Nozzle 43414057
11. Crevice Tool 38617017
12. Extension Tube 43453027
13. Gasket Part No Longer Available
14. Extension Tube-Curved -17 In 43466040
14. Extension Tube Curved - 22 In 43466037
24. Converter Body Assembly Part No Longer Available
25. Cleaning Tool Bag Part No Longer Available
26. Hose Connector Short (Use With Continuous Convolution Hose) Part No Longer Available
26. Hose Connector- Short (Use With Circular Ribbed Hose) Part No Longer Available
27. Hose Assembly Part No Longer Available
27. Hose Less Ends (Circular - Ribbed) Part No Longer Available
28. Hose Sleeve (Use With Continuous Convolution Hose) 32156010
28. Hose Sleeve Assembly (Lndudes Hose Sleeve & Tubing) (Use With Circular Ribbed Hose) 12131
29. Hose Connector Collar (Use With Continuous Convolution Hose) 36116006
29. Hose Connector Collar (Use With Circular Ribbed Hose) 36171025
30. Hose Connector Curved With Rings - Aap (Use With Continuous Convolution Hose) 43466044
30. Hose Connector Curved With Latch Ring (Without Suction Regulator) (Use With Circular Ribbed Hose) Part No Longer Available
31. Suction Control Ring 38711006
33. Latch Ring 36153009
34. Hose Assembly Complete - Front Conversion (Continuous Convolutions)(Without Suction Regulator) Part No Longer Available
34. Hose Assembly Complete - Front Conversion Circular Ribbed Without Suction Regulator Part No Longer Available
47. Extension Tube Part No Longer Available
48. Extension Tube - Poly - Ag 3863801P

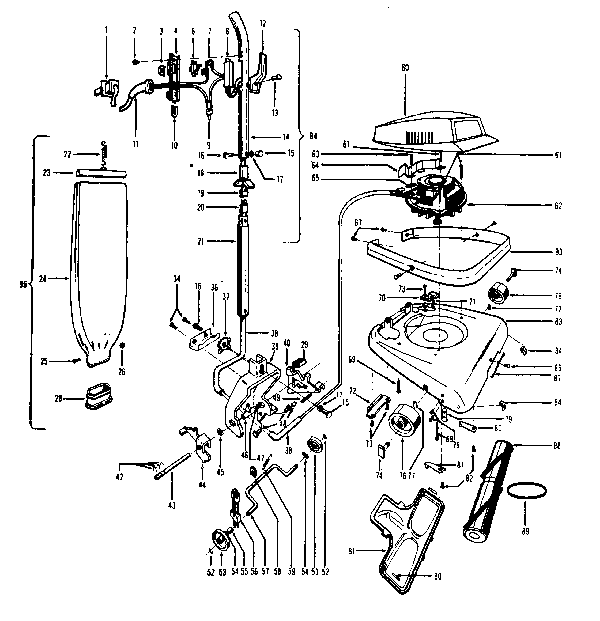

Hoover C1065 Industrial Cleaner Parts List & Schematic
ItemPart Number
1. Attachment Cord - Hp - 50' 46323122
2. Screw 21465314
3. Switch Button - Ag Part No Longer Available
4. Switch Cover - Ag 37258110
Wire Tie 27479307
6. Switch 281770KD
7. Terminal 27666702
8. Switch Case 37214070
9. Wire Nut 48969
10. Retainer 34253010
11. Cord Protector Part No Longer Available
12. Cord Clip - Ag 39441016
13. Rivet Part No Longer Available
14. Upper Handle - Ly Part No Longer Available
15. Handle Nut 32277021
16. Handle Bolt 21631301
17. Washer (Metal) 13704
17. Washer (Plastic) Part No Longer Available
18. Insulator Part No Longer Available
19. Connector Cord Part No Longer Available
20. Connector Cord 46321033
21. Lower Handle - Ax 32284018
22. Support Spring 38335009
23. Bag Clip & Spring - Ly 41424025
23. Bag Clip & Spring 41128007
24. Cloth Bag - Ag 43674221
24. Cloth Bag - Jx/Ee - Wide 43674096
25. Screw 21765159
26. Nut 15854EF
28. Bag Flange & Gasket 41424011
29. Foot Pad - Ag 38426080
34. Screw 21481752
36. Bail Grip Part No Longer Available
37. Handle Plate 35463011
38. Tubing - Ag 31728022
39. Bail - Ag Part No Longer Available
40. Handle Control Lever - Ag 43137047
42. Lock Ring Part No Longer Available
43. Bail Shaft 161509AY
44. Adjustment Lever - Plastic Part No Longer Available
45. Washer 21312724
46. Bag Flange Lever 19907
47. Spring 48409FW
48. Roller Detent Part No Longer Available
49. Pivot Pin 47450AY
52. Lock Ring 32182001
53. Rear Wheel 38521041
54. Washer 21312772
55. Screw Part No Longer Available
56. Cam Follower 43263003
57. Rear Wheel Shaft 33152003
58. Yoke 34252005
59. Spring 161513
60. Hood Part No Longer Available
61. Screw Part No Longer Available
62. Motor 43574193
63. Screw Part No Longer Available
64. Baffle Part No Longer Available
65. Retainer 34312011
67. Rivet 32242004
69. Screw 21447020
70. Retainer 34665007
71. Spring 12559FW
72. Axle / Flange Retainer 35434040
73. Screw 17001FW
74. Wheel Shaft 47457AY
76. Carrier Wheel 34791AG
77. Lock Ring Part No Longer Available
78. Rivet Part No Longer Available
79. Washer 21312781
80. Bottom Plate Latch 36153006
81. Bottom Plate Latch 36153006
82. Screw Part No Longer Available
83. Main Casting - Jm - Plastic 42242213
84. Retainer Spring 34784021
86. Rivet (Use With Metal Bottom Plate) 12503EF
87. Bottom Plate Spring (Use With Metal Bottom Plate) 12138FW
88. Agitator 41435005
89. Belt 44783AG
90. Support Pad (Use With Metal Bottom Plate) 34111001
91. Bottom Plate (Metal) 42246062
91. Bottom Plate - Ag 37245081
93. Furniture Guard - Ly Part No Longer Available
94. Handle Complete - Ly Part No Longer Available
95. Outer Bag Complete - Aaw / Ag 43675187
Hoover C1065 Industrial Cleaner Parts List & Schematic
ItemPart Number
28. Sleeve 32156010
48. Converter Part No Longer Available
49. Hose Converter Collar Part No Longer Available
50. Hose Tube Curved Part No Longer Available
51. Hose Grip Collar 12704BZ
52. Converter Part No Longer Available
53. Hose Grip 23393JM
55. Hose Tube Curved Part No Longer Available
59. Hose Complete, Ultraflex (Commercial) (Use With Converter 34202 Or 35190) 22671JM
60. Hose End Short Part No Longer Available
63. Converter (Use With Hose 22671) 35190
64. Converter (Use With Hose 22671) Part No Longer Available
65. Hose - Less Ends Part No Longer Available
66. Hose - Less Ends Part No Longer Available
67. Hose Assembly Complete - Tufflex (Standard Rear Conversion) Part No Longer Available
Ultraflex Hose - 50' Length Part No Longer Available
Tufflex Hose - 50' Length Part No Longer Available
Hoover C1065 Industrial Cleaner Parts List & Schematic
ItemPart Number
Motor (1-Speed With Guide) 43574192
Motor (1-Speed Without Guide) 43574193
1. Screw Part No Longer Available
2. Washer 14062
3. Indicator Guide 41961009
4. Upper Bearing 42934002
5. Vent Fan 38755004
6. Screw Part No Longer Available
7. Upper Motor Casing 19857
8. Carbon Brush 47318012
9. Brush Insulator 36315003
11. Armature 44768051
12. Bolt Part No Longer Available
13. Field Coil Part No Longer Available
14. Screw 21772501
15. Lower Motor Case Part No Longer Available
16. Nut 15673
17. Retainer 32184003
18. Washer 19772
19. Nut Part No Longer Available
20. Spacer Part No Longer Available
21. Washer Part No Longer Available
22. Fan - Poly 38755011
24. Motor Pulley 43251003
25. Bearing 24152807
26. Terminal 14320
27. Bearing Kit Part No Longer Available
Indicator Guide Spring 35276006
Hoover C1065 Industrial Cleaner Parts List & Schematic
ItemPart Number
Agitator 41435005
1. Thread Guard - Lh Part No Longer Available
2. Bearing 43267002
3. Washer 21347003
4. End 160542
5. Agitator Brush 48445001
6. Shaft 32724008
7. Thread Guard - Rh 12985AY
