Cirrus CR79 Upright Vacuum Cleaner Parts List & Schematic
ItemModels To FitPart Number
1. Dust Compartment (Green) CR79C-75005
2. Rubber Boot (Gray) CR79C-32002
3. Vacuum Sensor & Fullbag Indicator CR79C-36400
4. Handle Fitting (Rear) CR79C-70590
5. Switch Activator Spring CR79C-77023
6. Switch Mounting Plate CR79C-75092
7. Switch CR79C-36000
8. Switch Activator CR79C-34520
9. Plastic Washer CR79C-77024
10. Screw CR79C-77025
11. Handle Fitting (Front) CR79C-70591
12. Cord Holder (Black) CR79C-32002
13. Screw CR79C-77032
14. P.C. Board Holder CR79C-75090
15. Screw CR79C-77003
16. Dust Compartment Side Seals CR79C-76900
17. Hepa Type Paper Bag 6 Pack CR79C-14000
17. Paper Bag Micro Filtration 12 Pack CR79C-14005
18. Filter Support Screen CR79C-18420
19. Secondary Filter CR79C-18005
20. Bag Supporter (Red) CR79C-18422
21. Dust Cover Seal CR79C-76902
22. Switch Housing Cover (Green) CR79C-75904
23. Screw CR79C-77026
24. Motor Compartment Seals CR79C-76022
25. Motor Exhaust Housing with Gasket CR79C-75899
27. Handle Screw CR79C-77030
28. Screw CR79C-77000
29. Release Button Cover (Gray) CR79C-75804
30. Cover Release Button (Gray) CR79C-75027
31. Cover Release Button Spring CR79C-77027
32. Dust Cover (Green) CR79C-75502
33. Screw CR79C-77000
34. Motor Cover (Green) CR79C-79037
35. Motor Cover Seal CR79C-76010
36. Cap Nut CR79C-71505
37. Rear Wheel (Black) CR79C-71001
38. Washer CR79C-77033
39. Rear Wheel Shaft CR79C-71003
40. Screw CR79C-77034
41. Electrostatic Filter CR79C-18052
42. Screw CR79C-77035
43. Filter Cover (Green) CR79C-75822
44. Filter Holder (Green) CR79C-75826
45. Electrostatic Filter Holder Assembly (Red) CR79C-75827
46. Screw CR79C-77035
47. Filter Cover Fitting CR79C-75890
48. Filter Cover Knob Fitting CR79C-75895
49. Filter Cover Knob (Gray) CR79C-75898
50. Stretch Hose Complete (Gray) CR79C-40006
51. Suction Inlet (Gray) CR79C-75055
52. Suction Inlet Lid Spring CR79C-77031
53. Suction Inlet Lid (Gray) CR79C-75054
54. Suction Control Slide (Gray) CR79C-75056
55. Suction Inlet (Large) CR79C-76080
56. Suction Inlet (Small) CR79C-76081
57. Stretch Hose (36 cm) CR79C-40052
58. Hose Cuff (Gray) CR79C-45001
59. Suction Inlet Cover Seal CR79C-76020
60. Handle Grip Set (Gray) CR79C-70251
61. Handle Lever Switch Rod CR79C-34500
62. Switch Knob CR79C-34505
63. Switch Window (Gray) CR79C-34511
64. Screw CR79C-77000
65. Screw CR79C-77003
66. Handle Side Clip (Gray) CR79C-70521
67. Washer CR79C-77005
68. Cord Hook Spring CR79C-77010
69. Upper Cord Hook (Gray) CR79C-70505
70. Handle Tube CR79C-70002
71. Screw CR79C-77012
72. Spring Washer CR79C-77014
73. Lower Cord Hook (Gray) CR79C-70506
74. Power Cord 33' 17/2 (Gray) CR79C-30005
75. Cord Protector CR79C-32090
76. Lamb Motor CR79C-60005
77. Carbon Brush CR79C-63005
78. Motor Mount (Front) CR79C-62010
79. Cord Clip Rubber CR79C-32600
80. Motor Support Cover (Black) CR79C-62020
81. Motor Support Cover Foam CR79C-76030
82. Motor Mount (Rear) CR79C-62025
83. Motor Bushing CR79C-62030
84. Motor Support Housing (Black) CR79C-62033
85. Screw CR79C-70000
86. Motor Support Housing Foam CR79C-76033
87. Long Hose Cuff CR79C-45002
88. Hose Rack CR79C-75063
89. Screw CR79C-77034
Cirrus CR79 Upright Vacuum Cleaner Parts List & Schematic
ItemModels To FitPart Number
1. Nozzle Housing (Green) CR79C-73002
2. Plastic Bushing (Black) CR79C-73400
3. Clutch Pedal Pivot (Gray) CR79C-73630
4. Carpet/Floor Pedal (Gray) CR79C-73632
5. Clutch Pedal Ring Holder (Black) CR79C-73634
6. Bottom Plate Lock Screw CR79C-77039
7. Clear Lens CR79C-73410
8. Nozzle Housing Felt Packing CR79C-73480
9. Vented Support Felt Packing CR79C-73484
10. Vented Support Fitting CR79C-73482
11. Nozzle Hose CR79C-40007
12. Nozzle Inlet CR79C-73430
13. Clutch Crank Rod Spring CR79C-77048
14. Upper Clutch Pedal Ring (Black) CR79C-73635
15. Lower Clutch Pedal Ring (Black) CR79C-73636
16. Clutch Pedal Ring Pin CR79C-73637
17. Clutch Crank Rod Pin CR79C-73638
18. Clutch Crank Rod Assembly (Includes Items 16-23, 30) CR79C-73647
19. E-Clip CR79C-77049
20. Washer CR79C-77050
21. E-Clip CR79C-77051
22. Clutch Crank Rod Pin Holder CR79C-73640
23. Pedal Frame Holder CR79C-73641
24. Foot Pedal Complete (Gray) CR79C-73642
25. Foot Pedal (Gray) CR79C-73643
26. Foot Pedal Shaft CR79C-73782
27. Rear Belt Cover (Gray) CR79C-73792
28. Foot Pedal Spring CR79C-77042
29. Pedal Frame CR79C-73646
30. Screw CR79C-77046
31. Screw CR79C-77043
32. Screw CR79C-77052
33. Screw CR79C-77032
34. Clutch Crank Rod Frame Complete CR79C-73500
35. Clutch Crank Rod CR79C-73502
36. Clutch Crank Rod Frame CR79C-73504
37. Clutch Lever Boot CR79C-73506
38. E-Clip CR79C-77053
39. Clutch Lever CR79C-73508
40. Clutch Crank Rod Spring CR79C-77054
41. Clutch Crank Rod Frame Shaft CR79C-73510
42. Washer CR79C-77055
43. Rod Frame Shaft Spring CR79C-77056
44. Washer CR79C-77037
45. Clutch Crank Rod CR79C-73512
46. Spring Pin CR79C-77057
47. Clutch Crank Rod Pin CR79C-73514
48. Screw CR79C-77032
49. Belt 2 Pack CR79C-10000
50. Furniture Guard (Gray) CR79C-74102
51. Washer CR79C-77044
52. Screw CR79C-77000
53. Bottom Plate Assembly CR79C-76100
54. Bottom Plate Seal CR79C-76001
55. Front Wheel Pin CR79C-71010
56. Front Wheel (Black) CR79C-71011
57. Push-On Nut CR79C-77015
58. Screw CR79C-77016
59. Bottom Plate Latch Washer CR79C-77017
60. Bottom Plate CR79C-76101
61. Bottom Plate Latch Spring CR79C-77018
62. Bottom Plate Latch (Black) CR79C-76400
63. Lead Wire (Black) CR79C-36908
64. Thermal Switch CR79C-36005
65. Washer CR79C-77005
66. Screw CR79C-77047
67. Cord Clip CR79C-32003
68. Wire Nut CR79SS-3270
69. Vacuum Sensor Cord CR79C-36908
70. Lead Wire Red CR79C-36910
71. Lead Wire White CR79C-36912
72. Wire Bushing CR79C-36914
73. Reflector CR79C-73412
74. Screw CR79C-77046
75. Spring Washer CR79C-77045
76. Screw CR79C-70000
77. Bulb Socket CR79C-73414
78. Light Bulb CR79FA-3515
79. Lead Wire (White) CR79C-36902
80. Lead Wire (Black) CR79C-36900
81. Agitator Assembly CR79C-20002
82. Agitator Core CR79C-20500
83. Rubber End Cover (Black) CR79C-20510
84. End Cap CR79C-20512
85. Agitator Felt Washer CR79C-77036
86. Washer CR79C-77037
87. Agitator Bearing CR79C-62000
88. Agitator Bearing Holder CR79C-20514
89. Brush Strip CR79C-22000
90. Clutch Pulley (Large) Complete CR79C-20524
91. Clutch Pulley (Large) CR79C-20525
92. E-Clip CR79C-77028
93. Washer CR79C-77038
94. Clutch Pulley (Small) Complete CR79C-20526
95. Clutch Pulley (Small) Cover CR79C-20528
96. Clutch Pulley (Small) CR79C-20527
97. Agitator Shaft CR79C-20522
98. Screw CR79C-77040

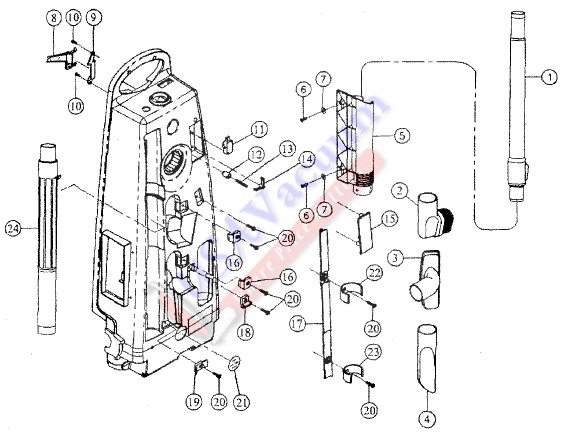

Cirrus CR79 Upright Vacuum Cleaner Parts List & Schematic
ItemModels To FitPart Number
1. Telescopic Wand Complete Metal CR79, CR89, CR99C-50008
2. Dusting Brush (Gray) CR79, CR89, CR99C-53000
3. Upholstery Tool (Gray) CR79, CR89, CR99C-52000
4. Crevice Tool (Gray) CR79, CR89, CR99C-54000
5. Wand Retainer (Green) CR79C-75061
5. Wand Retainer (Blue) CR89C-75062
6. Plastic Extension Wand CR79, CR89, CR99C-50009
7. Washer CR79, CR89, CR99C-77005
8. Check Bag Lever (Red) CR79, CR89, CR99C-16000
9. Check Bag Lever Holder (Red) CR79, CR89, CR99C-16010
10. Screw CR79, CR89, CR99C-77000
11. Switch CR79, CR89, CR99C-34050
12. Check Bag Round Knob CR79, CR89, CR99C-75100
13. Check Bag Spring CR79, CR89, CR99C-77058
14. Check Bag Crank CR79, CR89, CR99C-75102
15. Check Bag Cover (Green) CR79C-75104
15. Check Bag Cover (Blue) CR89C-75106
16. Tool Clip (Gray) CR79, CR89, CR99C-75080
18. Upholstery Tool Clip (Gray) CR79, CR89, CR99C-75076
19. Wand Retainer Clip (Gray) CR79, CR89, CR99C-75074
20. Screw CR79, CR89, CR99C-77000
21. Warning Label CR79, CR89, CR99C-74000
22. Motor Cord Cover (Green) CR79C-75082
22. Motor Cord Cover (Blue) CR89C-75084
23. Upper Wand Clip (Gray) CR79, CR89, CR99C-75072
24. Lower Wand Clip (Gray) CR79, CR89, CR99C-75070
Turbo Hand Tool CR99FA-5716
