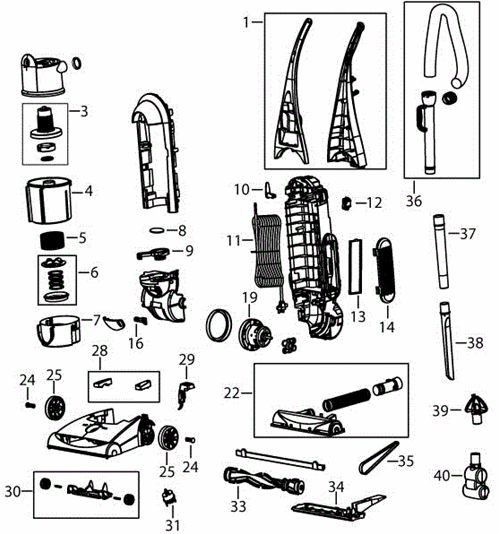

Bissell 21K3 22C1 82H1 CleanView Helix Upright Vacuum Parts List & Schematic

Item	Part Number
1. Upper Handle Assembly With Turbobrush Holder - Black	2032400
1. Upper Handle Assembly With Turbobrush Holder - Intuitive	2032451
1. Upper Handle Assembly With Turbobrush Holder - Dangerously Elegant	2032452
1. Upper Handle Assembly With Turbobrush Holder - Seawater Blue	2032471
3. Cyclone Assembly	2031180
4. Dirt Cup - Clear	2032453
5. Foam Filter	2031192
6. Pleated Circular Filter	2031464
7. Filter Case	2032454
8. Lever Filter	2031215
9. Lock N' Seal Lever	2032455
10. Cord Release	2031198
11. Power Cord	2031495
12. Switch- Rocker	2031035
13. Post Motor Filter Hepa	32076
14. Post Motor Filter Grille	2032456
16. Light Bulb - 12 Volt	2031297
19. Vacuum Motor, Compact	2032211
22. Case Drum Assembly - 13.5" - 82H1	2032457
22. Case Drum Assembly - 15" Without Window - 22C1	2032458
22. Case Drum Assembly - 15" With Window - 21K3	2032459
24. Axle	2032460
25. Rear Wheel	2032461
28. Neck Brush - L&R	2032462
29. Lever Release	2032463
30. Roller Assembly With Axle	2032464
31. Height Adjustment Knob	2032465
33. Brush - 13.5"	2032448
33. Brush - 15"	2032449
34. Access Plate - 13.5"	2032466
34. Access Plate - 15"	2032467
35. Belt	2031093
36. Hose Assembly - Black	2032450
36. Hose Assembly - Clear	2032468
37. Extension Wand	2031084
38. Crevice Tool	2031063
39. Dust Brush Combo Tool	2031099
40. Turbobrush - Grey	2032447
Screw - Handle / Hose Cuff	2031003
User'S Guide	1104080

82H1 = Black
22C1 = Intuitive Purple
22C1-2 = Seawater Blue
21K3 = Dangerously Elegant
